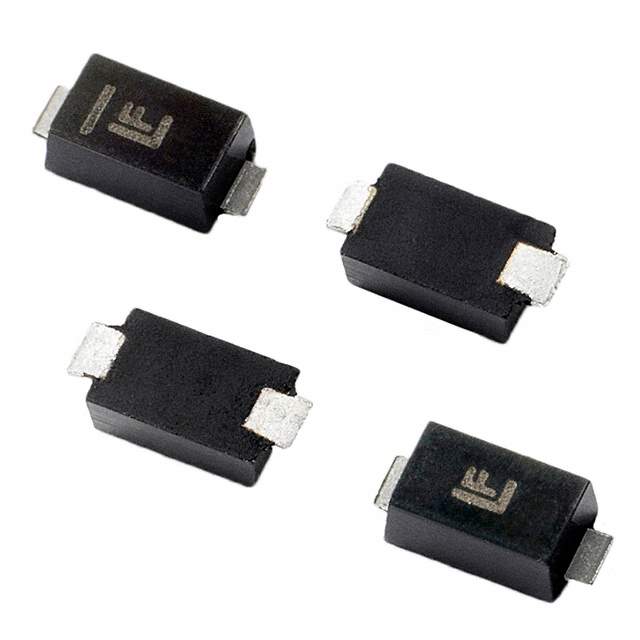

Same model may have multiple batches, images only for reference.

SMF4L9.0CA

Name: SMF4L9.0CA
Brand: Littelfuse Inc.
SKU: 1300005
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMF4L9.0CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Datasheet	SMF4L9.0CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SMF4L
Package	Tape & Reel
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	9V
Voltage - Breakdown (Min)	10V
Voltage - Clamping (Max) @ Ipp	15.4V
Current - Peak Pulse (10/1000µs)	24.1A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	SOD-123F
Supplier Device Package	SOD-123F
Other Names	18-SMF4L9.0CATR,18-SMF4L9.0CACT,-1024-SMF4L9.0CACT,18-SMF4L9.0CADKR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1300005-SMF4L9.0CA
Ultra Librarian 3D Model	Ultra Librarian SMF4L9.0CA CAD Model

Alternative Products

Description

The SMF4L9.0CA is an electronic component manufactured by Littelfuse Inc.

Application: General Purpose
Package: SOD-123F
Standard Package: 3,000
Voltage Reverse Standoff: 9V
Voltage Breakdown: 10V
Voltage Clamping: 15.4V (Max) @ Ipp
Power Peak Pulse: 400W
Mounting: SMD (SMT)
Channel Type: Bidirectional
RoHS Compliant: Yes
ECCN: EAR99
Capacitance: -
Temperature Range: -55°C ~ 150°C (TJ)
