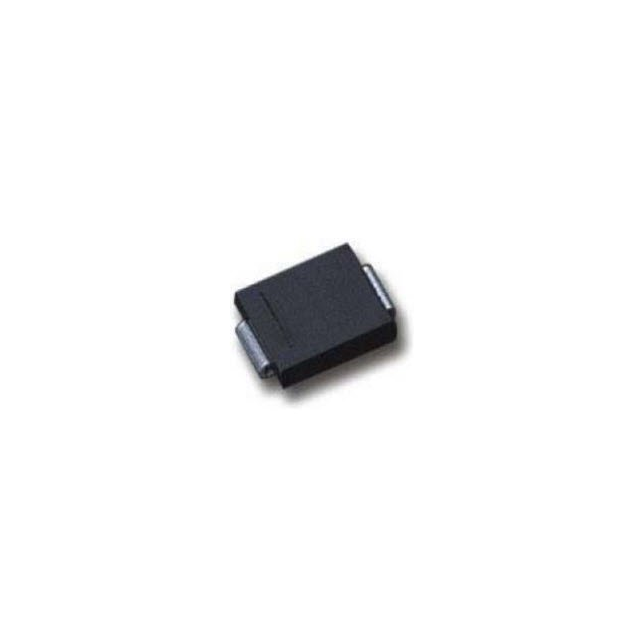

SMDJ22 Real Image
Same model may have multiple batches, images only for reference.

SMDJ22

Part No SMDJ22
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMDJ22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMDJ
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 23.09V
Voltage - Clamping (Max) @ Ipp 37.28V
Current - Peak Pulse (10/1000µs) 84.5A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMCJ)
Other Names -SMDJ22
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300173-SMDJ22
Ultra Librarian 3D Model Ultra Librarian SMDJ22 CAD Model

Description

The SMDJ22 is a Zener type TVS diode from Littelfuse Inc.

  • Package: Tape & Reel
  • Purpose: General Purpose
  • Standard Package: 3,000
  • Channel Type: Unidirectional
  • Voltage - Reverse Standoff (Typ): 22V
  • Voltage - Breakdown (Min): 23.09V
  • Voltage - Clamping (Max) @ Ipp: 37.28V
  • Power - Peak Pulse: 3kW
  • Mounting Type: SMD (SMT)
  • Package / Case: DO-214AB (SMCJ)
  • Operating Temperature: -65°C to 150°C (TJ)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.10.0080
