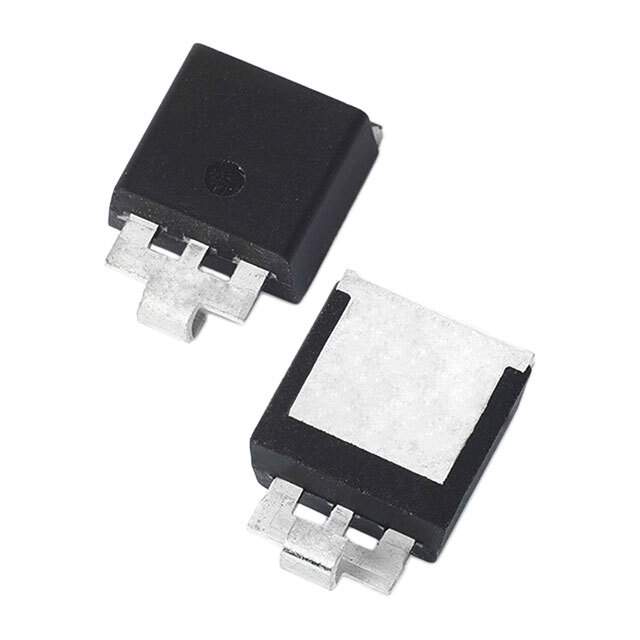

Same model may have multiple batches, images only for reference.

SLD8S27A

Name: SLD8S27A
Brand: Littelfuse Inc.
SKU: 1300857
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SLD8S27A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Datasheet	SLD8S27A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, SLD8S
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	27V
Voltage - Breakdown (Min)	29.9V
Voltage - Clamping (Max) @ Ipp	43.6V
Current - Peak Pulse (10/1000µs)	160A
Power - Peak Pulse	7000W (7kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	Nonstandard SMD
Supplier Device Package	SMTO-263
Other Names	F8156TR,-SLD8S27A,F8156DKR,F8156CT
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1300857-SLD8S27A
Ultra Librarian 3D Model	Ultra Librarian SLD8S27A CAD Model

Alternative Products

Description

The SLD8S27A is a Zener diode designed for use in automotive applications.

Type: Zener
Application: Automotive
Channel Type: Unidirectional
Voltage - Reverse Standoff: 27V
Voltage - Breakdown: 29.9V
Voltage - Clamping @ Ipp: 43.6V
Power - Peak Pulse: 7000W
Capacitance @ Frequency: -
Current - Peak Pulse: 160A
Package: Tape and Reel
Mounting Technology: SMD (SMT)
Operating Temperature: -55°C to 175°C (TJ)
Series: Automotive, AEC-Q101, SLD8S
MSL Level: 1 (unlimited)
HTSUS: 8541.10.0080
Manufacturer: Littelfuse Inc.
