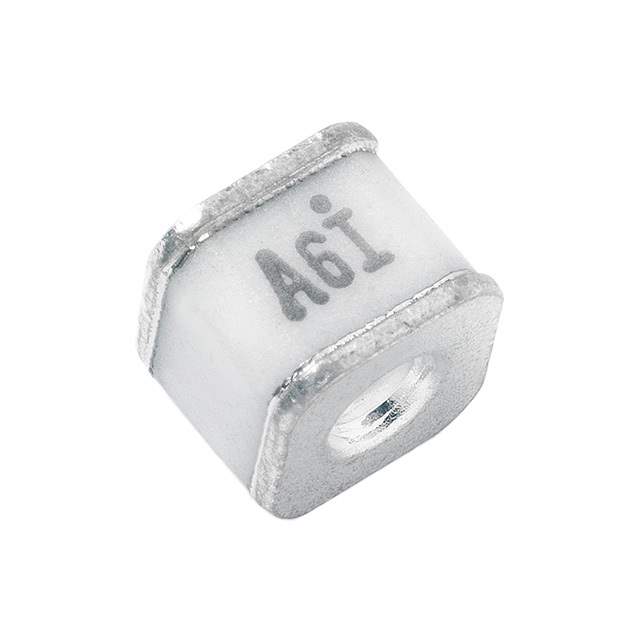

SH470

Part No SH470
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series SH
Package Tape & Reel
Voltage - DC Spark Over (Nom) 470 V
Impulse Discharge Current (8/20µs) 5000A (5kA)
Number of Poles 2
Fail Short No
Mounting SMD (SMT)
Package / Case 2-SMD, Square End Block
Other Names F9944TR,F9944CT,-SH470,F9944DKR
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301878-SH470
Ultra Librarian 3D Model Ultra Librarian SH470 CAD Model

Description

The gas discharge tube arrester (GDT) is part of the SH series from Littelfuse Inc.

  • Voltage: 470 V
  • Mounting: Surface mount device (SMD)
  • Poles: Two
  • Fail-short feature: Yes
  • Impulse discharge current: 5000A (5kA) for 8/20µs
  • Package/Case: 2-SMD, square end block
  • Category: Circuit protection
  • ECCN: EAR99
  • MSL level: 1 (unlimited)
  • HTSUS: 8536.30.8000
  • Other names: F9944TR, F9944CT, -SH470, and F9944DKR
