Same model may have multiple batches, images only for reference.

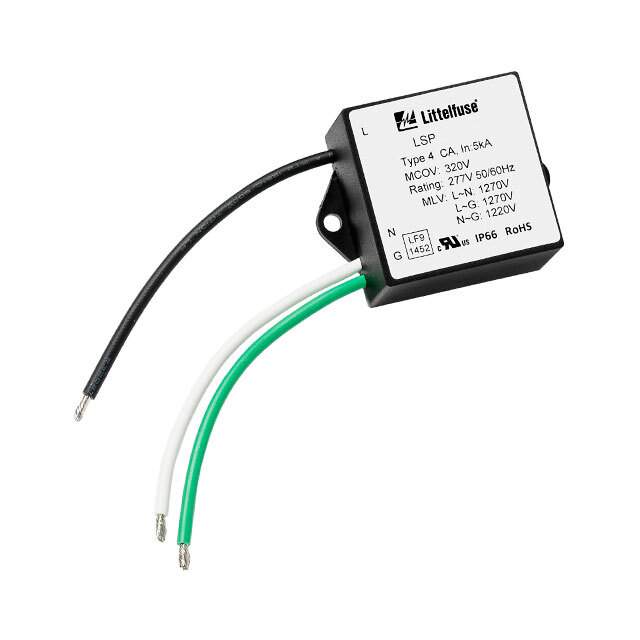

LSP05480LLP Real Image
Same model may have multiple batches, images only for reference.

LSP05480LLP

Part No LSP05480LLP
Manufacturer Littelfuse Inc.
Catalog Surge Protection Devices (SPDs)
Description LIGHTING SURGE PROTECT 480V SCRW
Datasheet
LSP05480LLP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series LSP
Package Tray
Type Type 2, Type 4
Form Module Only
Number of Poles 1
Voltage - Continuous Operating (Max) (MCOV) 510VAC
Current - Discharge (Nom) (8/20µS) 5 kA
Current - Discharge (Max) (8/20µS) 10 kA
Voltage - Protection Level (VP) (2416) 1.9 kV
Temperature Range - Operating -45°C ~ 85°C
Features Thermally Protected
Mounting Type Screw
Approval Agency CE, cURus, UL
Standard Package 8
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 1337066-LSP05480LLP
Ultra Librarian 3D Model Ultra Librarian LSP05480LLP CAD Model

Description

The Littelfuse Inc. LSP05480LLP is a surge protection device that belongs to the transient voltage suppressors category. The manufacturer of this product is Littelfuse Inc..

  • Category: Transient Voltage Suppressors
  • Type: Type 2, Type 4
  • Features: Thermally Protected
  • Voltage - Continuous Operating (Max) (MCOV): 510VAC
  • Current - Discharge (Nom) (8/20µS): 5 kA
  • Current - Discharge (Max) (8/20µS): 10 kA
  • Voltage - Protection Level (VP) (2416): 1.9 kV
