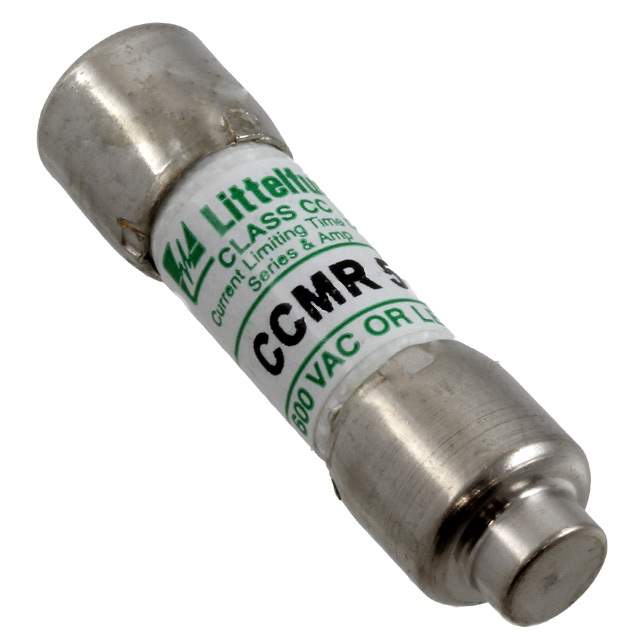

CCMR030.TXP Real Image
Same model may have multiple batches, images only for reference.

CCMR030.TXP

Part No CCMR030.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 30A 600VAC/500VDC / 30A 600 V AC 500 V DC Fuse Cartridge Holder
Datasheet
CCMR030.TXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge
Current Rating (Amps) 30A
Voltage Rating - AC 600 V
Voltage Rating - DC 500 V
Response Time Slow Blow
Applications Motor Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Case / Package 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number CCMR 30A,CCMR030,F5890,CCMR30A,CCMR30,CCMR030TXP,-1024-CCMR030.TXP
Standard Package 10
Win Source Part Number 1334816-CCMR030.TXP
Ultra Librarian 3D Model Ultra Librarian CCMR030.TXP CAD Model

Description

The Littelfuse Inc. 1334816-CCMR030.TXP is an electrical specialty fuse that belongs to the circuit protection category of electronic components.

  • Fuse Type: Cartridge
  • Response Time: Slow-Blow
  • Current Rating: 30A
  • DC Voltage Rating: 500 V
  • AC Voltage Rating: 600 V
  • Case/Package: 5AG, 10mm x 38mm (Midget)
  • Application: Motor Protection
  • Approval Agencies: CE, CSA, and UL
  • Standard Package: 10 fuses
