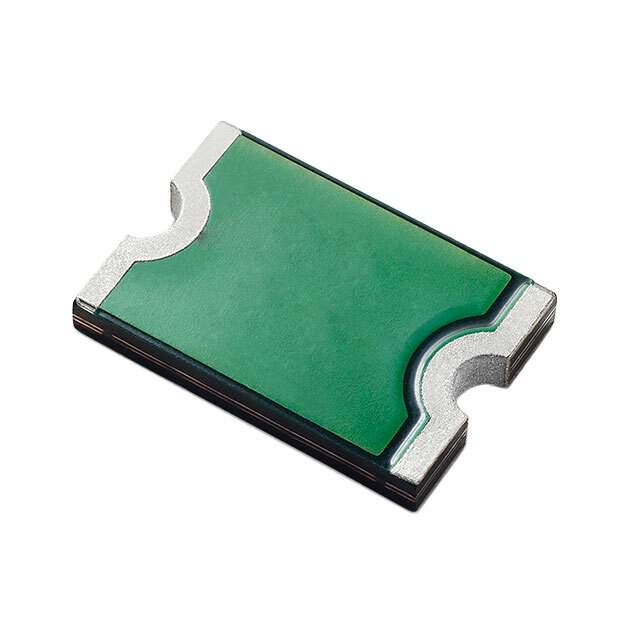

Same model may have multiple batches, images only for reference.

ASMDC185F/33-2

Name: ASMDC185F/33-2
Brand: Littelfuse Inc.
SKU: 1301596
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASMDC185F/33-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	ASMDC185F/33-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, ASMD
Package	Tape & Reel
Type	Polymeric
Voltage - Max	33V
Current - Max	40 A
Current - Hold (Ih) (Max)	1.85 A
Current - Trip (It)	3.7 A
Time to Trip	2.5 s
Resistance - Initial (Ri) (Min)	50 mOhms
Resistance - Post Trip (R1) (Max)	150 mOhms
Ratings	PS300, PS400
Mounting	SMD (SMT)
Package / Case	2-SMD
Dimension	0.295" L x 0.201" W (7.50mm x 5.10mm)
Thickness (Max)	0.028" (0.71mm)
Other Names	F9961DKR,-ASMDC185F/33-2,F9961CT,RF4575-000,F9961TR
Standard Package	4,000
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301596-ASMDC185F/33-2
Ultra Librarian 3D Model	Ultra Librarian ASMDC185F/33-2 CAD Model

Alternative Products

Description

The Littelfuse Inc. ASMDC185F/33-2 is a PolySwitch® ASMD series PTC resettable fuse that is designed for circuit protection.

Package: Tape and Reel
Standard Package: 4,000
Type: Polymeric
Voltage Max: 33V
Current Max: 40A
Current Hold: 1.85A (Max)
Current Trip: 3.7A
Time to Trip: 2.5s
Dimension: 0.295" L x 0.201" W (7.50mm x 5.10mm)
Initial Resistance (Ri): 50 mOhms
Post Trip Resistance (R1): 150 mOhms
Package: 2-SMD
ECCN: EAR99
MSL Level: 2A (4 Weeks)
HTSUS: 8533.40.8070
