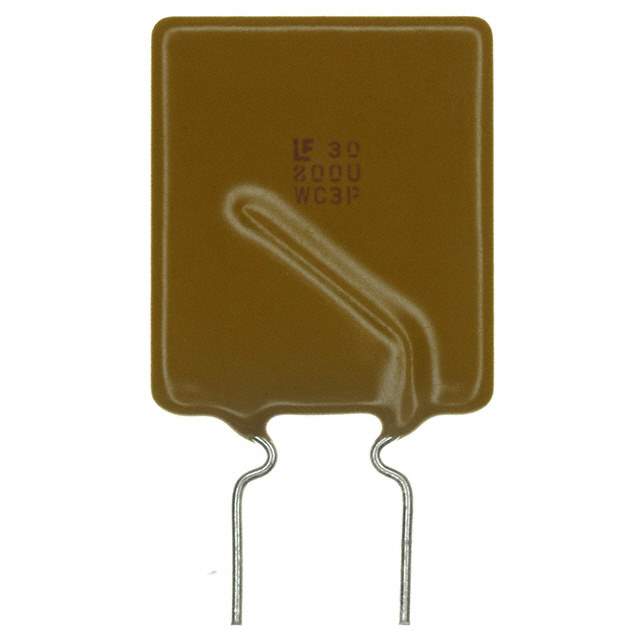

Same model may have multiple batches, images only for reference.

30R800UH

Name: 30R800UH
Brand: Littelfuse Inc.
SKU: 1334746
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	30R800UH
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 8A RADIAL / Polymeric PTC Resettable Fuse 30V 8 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Type	Polymeric
Voltage - Max	30V
Current - Max	40 A
Current - Hold (Ih) (Max)	8 A
Current - Trip (It)	16 A
Time to Trip	18.8 s
Resistance - Initial (Ri) (Min)	5 mOhms
Resistance - Post Trip (R1) (Max)	20 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Through Hole
Case / Package	Radial, Disc
Size / Dimension	0.850" L x 0.118" W (21.60mm x 3.00mm)
Height - Seated (Max)	1.224" (31.10mm)
Lead Spacing	0.402" (10.20mm)
Approval Agency	cURus, TUV
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	30R800,F2031,030R0800,-1024-30R800UH,030R0800U
Standard Package	100
Win Source Part Number	1334746-30R800UH
Ultra Librarian 3D Model	Ultra Librarian 30R800UH CAD Model

Alternative Products

Description

The Littelfuse Inc. 1334746-30R800UH is a polymeric type PTC resettable fuse with a size/dimension of 0.850 inches L x 0.118 inches W (21.60mm x 3.00mm) and a height-seated (Max) of 1.224 inches (31.10mm).

Type: Polymeric PTC Resettable Fuse
Size/Dimension: 0.850 inches L x 0.118 inches W (21.60mm x 3.00mm)
Height-Seated (Max): 1.224 inches (31.10mm)
Voltage-Max: 30V
Current-Max: 40A
Current-Hold (Ih) (Max): 8A
Current-Trip (It): 16A
Time to Trip: 18.8s
Popularity: High
Supply and Demand: Balance
