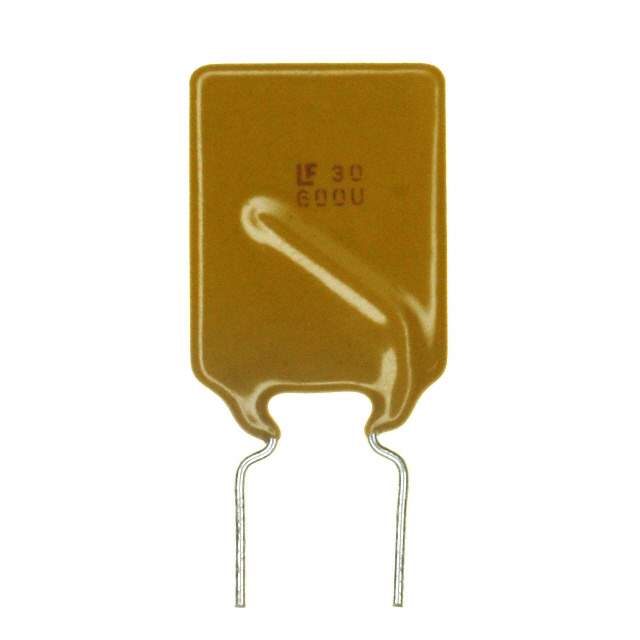

Same model may have multiple batches, images only for reference.

30R600UMR

Name: 30R600UMR
Brand: Littelfuse Inc.
SKU: 1301627
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R600UMR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Package	Cut Tape (CT),Tape & Box (TB)
Type	Polymeric
Voltage - Max	30V
Current - Max	40 A
Current - Hold (Ih) (Max)	6 A
Current - Trip (It)	12 A
Time to Trip	16 s
Resistance - Initial (Ri) (Min)	5 mOhms
Resistance - Post Trip (R1) (Max)	40 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max)	1.055" (26.80mm)
Lead Spacing	0.402" (10.20mm)
Approval Agency	cURus, TUV
Other Names	F1986CT,F1986TB,30R600UMR
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301627-30R600UMR
Ultra Librarian 3D Model	Ultra Librarian 30R600UMR CAD Model

Alternative Products

Description

The 30R600UMR is a POLY-FUSE® resettable fuse designed for circuit protection.

Package: Cut Tape or Tape and Box
Units per Package: 1000
Maximum Voltage Rating: 30V
Maximum Current: 40A
Hold Current: 6A
Trip Current: 12A
Time to Trip: 16s
Package: Radial Disc
Operating Temperature Range: -40°C to 85°C
Initial Resistance: 5 mOhms
Post-Trip Resistance: 40 mOhms
Manufacturer: Littelfuse Inc.
