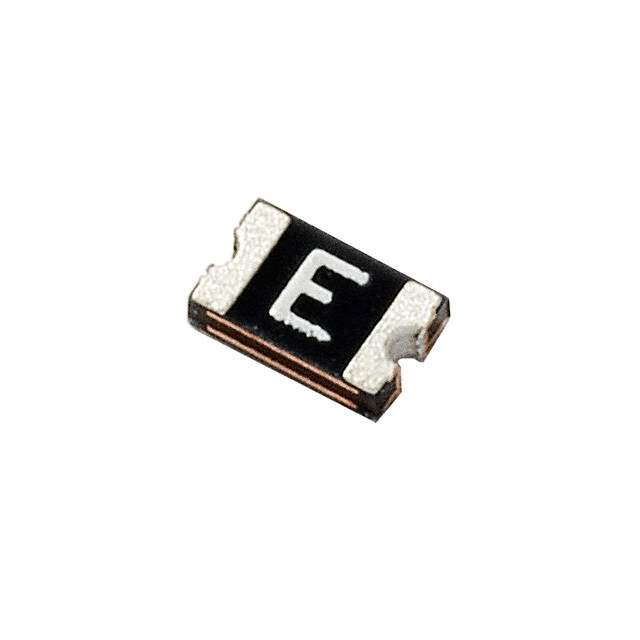

0805L100WR-A Real Image
Same model may have multiple batches, images only for reference.

0805L100WR-A

Part No 0805L100WR-A
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 0805L
Package Tape & Reel
Type Polymeric
Voltage - Max 6V
Current - Max 40 A
Current - Hold (Ih) (Max) 1 A
Current - Trip (It) 1.95 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 60 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), Concave
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.071" (1.80mm)
Approval Agency cURus, TUV
Other Names 18-0805L100WR-ACT,18-0805L100WR-ATR,18-0805L100WR-ADKR,-1024-0805L100WR-ACT
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1301628-0805L100WR-A
Ultra Librarian 3D Model Ultra Librarian 0805L100WR-A CAD Model

Description

The POLY-FUSE®, 0805L series 1301628-0805L100WR-A electronic component with Win Source Part Number 1301628-0805L100WR-A is a PTC resettable fuse.

  • Ratings: AEC-Q200
  • Mounting: SMD (SMT)
  • Voltage: 6V
  • Maximum Current: 40A
  • Package: Concave 0805 (2012 Metric)
  • Thickness: 0.071" (1.80mm)
  • Time to Trip: 300ms
  • Initial Resistance: 60 mOhms
