Same model may have multiple batches, images only for reference.

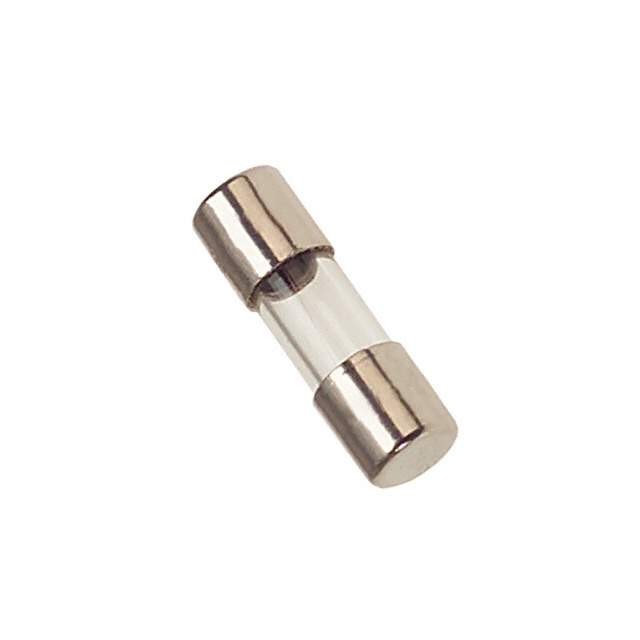

0225001.HXP Real Image
Same model may have multiple batches, images only for reference.

0225001.HXP

Part No 0225001.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 1A 250VAC 125VDC 2AG / 1 A 250 V AC 125 V DC Fuse Cartridge, Glass Holder 2AG, 5mm x 15mm
Datasheet
0225001.HXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Case / Package 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 35A AC, 10kA DC
Melting I2t 2.22
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.1027 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Part Number 225001.P,F2452,225001,0225001HXP,-1024-0225001.HXP,225001P
Standard Package 100
Win Source Part Number 1334671-0225001.HXP
Ultra Librarian 3D Model Ultra Librarian 0225001.HXP CAD Model

Description

The Littelfuse Inc. 1334671-0225001.HXP is a fast blow glass cartridge fuse with a voltage rating of 250V AC and 125V DC.

  • Voltage Rating: 250V AC and 125V DC
  • Breaking Capacity: 35A AC and 10kA DC
  • Current Rating: 1A
  • Size: 0.177" diameter x 0.570" L (4.50mm x 14.48mm)
  • DC Cold Resistance: 0.1027 Ohms
  • Approvals: CE, CSA, PSE, and UL
  • ROHS3 Compliant: Yes
  • MSL Level: 1
  • HTSUS: 8536.10.0020
