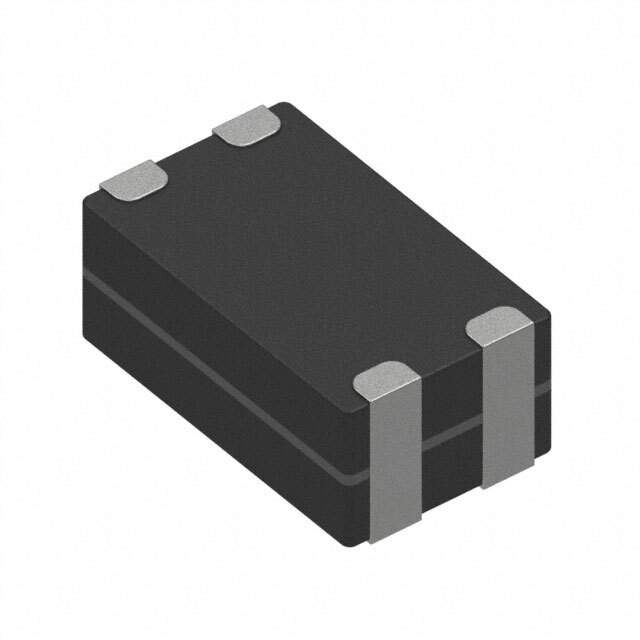

LCF201202A121TG Real Image
Same model may have multiple batches, images only for reference.

LCF201202A121TG

Part No LCF201202A121TG
Manufacturer Littelfuse Inc.
Catalog Common Mode Chokes
Description CMC 100MA 2LN 120 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features 2 Line Common Mode Choke Surface Mount 120 Ohms @ 100 MHz 100mA DCR 4Ohm
Manufacturer Littelfuse Inc.
Series LCF
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 0805 (2012 Metric), 4 Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number F10176TR, F10176CT, -LCF201202A121TG, F10176DKR
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922801-LCF201202A121TG
Ultra Librarian 3D Model Ultra Librarian LCF201202A121TG CAD Model

Description

The Littelfuse Inc. LCF201202A121TG is an obsolete 2 line common mode choke surface mount with a 120 Ohms @ 100 MHz 100mA DCR 4Ohm feature.

  • Product: LCF201202A121TG
  • Manufacturer: Littelfuse Inc.
  • Type: 2 Line Common Mode Choke
  • Mounting: Surface Mount
  • Impedance: 120 Ohms @ 100 MHz
  • Current: 100mA
  • DCR: 4Ohm
  • Package: 0805 (2012 Metric), 4 Lead
  • Operating Temperature: -40°C to 85°C
  • Status: Obsolete
