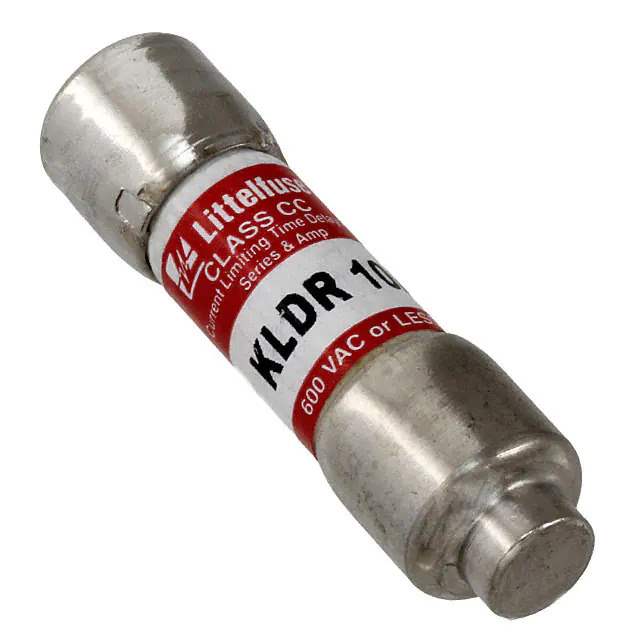

KLDR010.TXP Real Image
Same model may have multiple batches, images only for reference.

KLDR010.TXP

Part No KLDR010.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 10A 600VAC/300VDC / 10A 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR010.TXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 10A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 876370-KLDR010.TXP
Ultra Librarian 3D Model Ultra Librarian KLDR010.TXP CAD Model

Description

The KLDR010.TXP is a cartridge fuse from Littelfuse Inc.

  • Series: POWR-GARD KLDR
  • Package Type: Bulk
  • Application: Circuit Protection
  • Voltage Rating: 600V AC and 300V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC and 20kA DC @ Rated Voltage
  • Dimensions: 0.406 inches in diameter and 1.500 inches in length
  • Class: Class CC
  • Standard Package: 10 pieces
  • Mounting Requirement: Holder
  • Package Style: 5AG, 10mm x 38mm (Midget)
  • Current Rating: 10A
  • Status: Active
  • Approvals: CE, CSA, and UL
