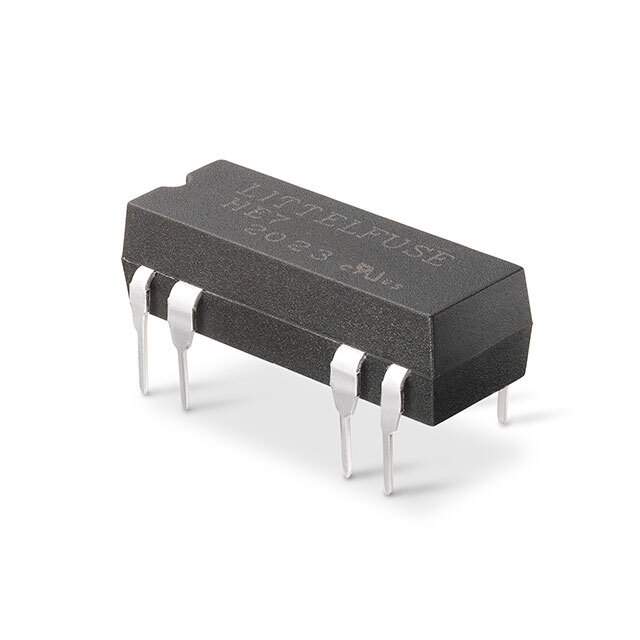

HE722A0510

Part No HE722A0510
Manufacturer Littelfuse Inc.
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED DPST 500MA 5V / Reed Relay 5VDC 200Ohm 0.5A DPST-NO( (19.5mm 9.52mm 5.5mm)) THT Dry
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Littelfuse Inc.
Series HE700
Packaging Tube
Relay Type Reed
Coil Type Non Latching
Coil Current 25mA
Coil Voltage 5VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 500mA
Switching Voltage 200VDC - Max
Turn On Voltage (Maximum) 3.75 VDC
Turn Off Voltage (Minimum) 0.5 VDC
Operate Time 1ms
Release Time 1ms
Features Diode
Mounting Style Through Hole
Termination Style PC Pin
Coil Resistance 200 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 775838-HE722A0510
Popularity Medium
Supply and Demand Status Balance
Family Name HE700
Introduction Date February 19, 2004
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HE722A0510 CAD Model

Description

The Littelfuse Inc. HE722A0510 is an electronic component manufactured by Littelfuse Inc.

  • Coil Voltage: 5VDC
  • Contact Rating: 500mA
