Same model may have multiple batches, images only for reference.

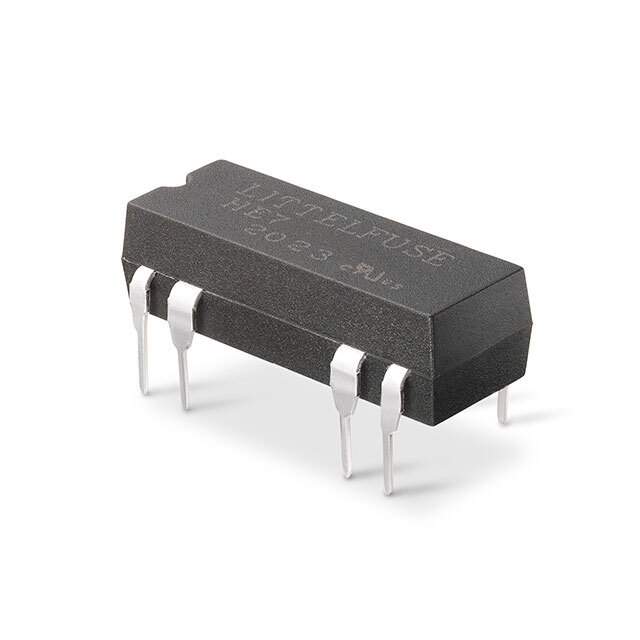

HE721R0510 Real Image
Same model may have multiple batches, images only for reference.

HE721R0510

Part No HE721R0510
Manufacturer Littelfuse Inc.
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED SPDT 250MA 5V / Reed Relay 5VDC 200Ohm 0.25A SPDT( (19.5mm 9.52mm 5.5mm)) THT Dry
Datasheet
HE721R0510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Littelfuse Inc.
Series HE700
Packaging Tube
Relay Type Reed
Coil Type Non Latching
Coil Current 25mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 250mA
Switching Voltage 175VDC - Max
Turn On Voltage (Maximum) 3.75 VDC
Turn Off Voltage (Minimum) 0.5 VDC
Operate Time 3ms
Release Time 3ms
Features Diode
Mounting Style Through Hole
Termination Style PC Pin
Coil Resistance 200 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 775837-HE721R0510
Popularity Medium
Supply and Demand Status Limited
Family Name HE700
Introduction Date February 19, 2004
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HE721R0510 CAD Model

Description

The Littelfuse Inc. 775837-HE721R0510 is a reed relay from the HE700 series, having a contact form of SPDT (1 Form C).

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 5VDC
  • Coil Resistance: 200 Ohms
  • Operate Time: 3ms
  • Release Time: 3ms
  • Supply and Demand Status: Limited
  • Mounting: Through Hole
  • Switching Voltage: 175VDC - Max
  • Diode: Yes
  • Category: Relays
