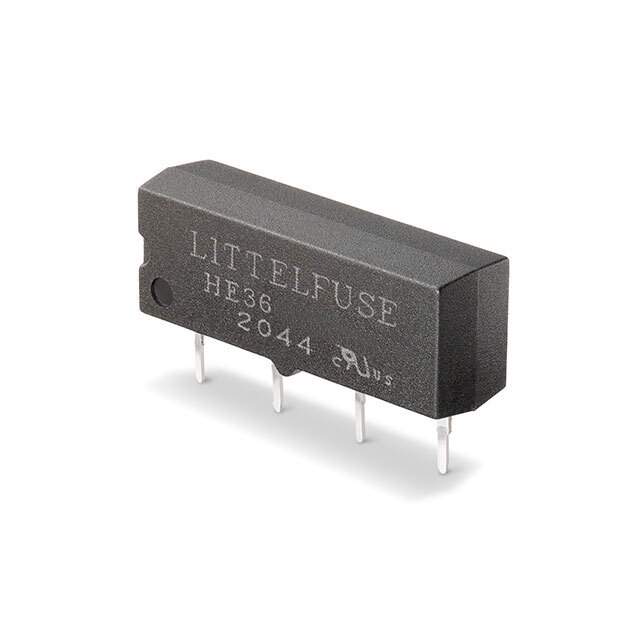

HE3621A1200 Real Image
Same model may have multiple batches, images only for reference.

HE3621A1200

Part No HE3621A1200
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPST 500MA 12V / HE3600 Miniature S.I.L. Relay Features and Benefits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500mA
Switching Voltage 200VDC - Max
Coil Current 12mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8 VDC
Must Release Voltage 1 VDC
Operate Time 1ms
Release Time 1ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 1 kOhms
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813834-HE3621A1200
Ultra Librarian 3D Model Ultra Librarian HE3621A1200 CAD Model

Description

The Littelfuse Inc. HE3621A1200 is a PC pin through-hole relay with SPST-NO contact form.

  • Coil Resistance: 1 kOhms
  • Coil Current: 12mA
  • Operate Time: 1ms
  • Relay Type: Non-Latching
  • Coil Voltage: 12VDC
  • Contact Rating Current: 500mA
  • Switching Voltage: 200VDC Maximum
  • Release Time: 1ms
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Tube
  • Manufacturer Pack Quantity: 800
  • Supply and Demand Status: Limited
