Same model may have multiple batches, images only for reference.

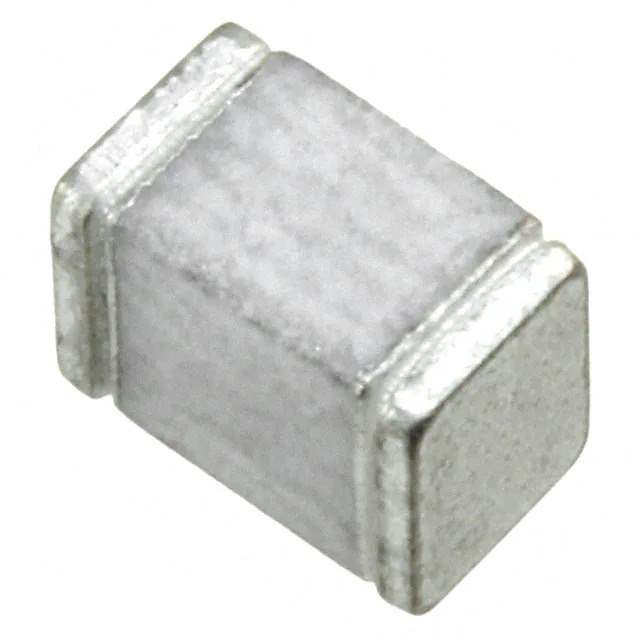

GTCC23-750M-R01-2 Real Image
Same model may have multiple batches, images only for reference.

GTCC23-750M-R01-2

Part No GTCC23-750M-R01-2
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 75V 1KA 2 POLE SURFACE MOUNT / Gas Discharge Tube 75 V 1000A (1kA) ±20% 2 Pole Surface Mount
Datasheet
GTCC23-750M-R01-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series GT
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 75 V
Impulse Discharge Current (8/20µs) 1000A (1kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Base Product Number GTCC23
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 1014533-GTCC23-750M-R01-2
Ultra Librarian 3D Model Ultra Librarian GTCC23-750M-R01-2 CAD Model

Description

The 1014533-GTCC23-750M-R01-2 is a gas discharge tube arrester (GDT) from Littelfuse Inc. It belongs to the GT series of circuit protection devices.

  • Package: Tape and Reel
  • Voltage DC Spark Over: 75V
  • Tolerance: ±20%
  • Poles: 2
  • Fail Short: Yes
  • Impulse Discharge Current: 1000A (1kA) with an 8/20µs waveform
  • Mounting: Surface Mount
  • Package Size: 1812
  • Operating Temperature: -40°C to 125°C
  • REACH: REACH unaffected
