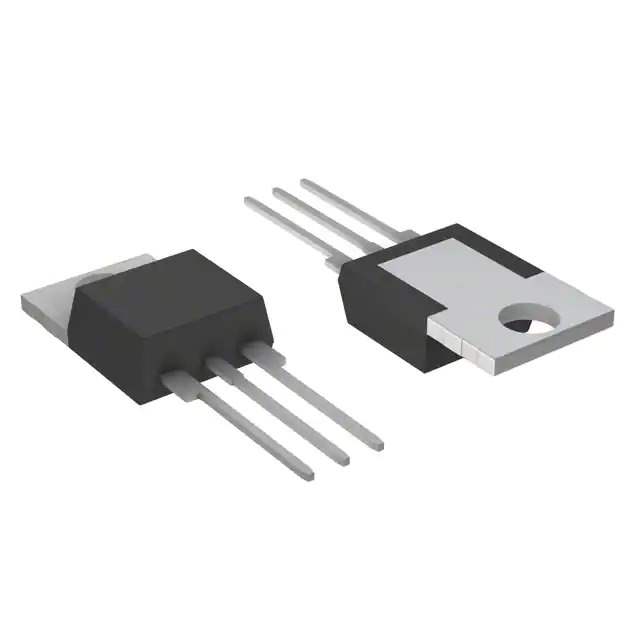

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Littelfuse Inc.
Package Bulk
Product Status Discontinued
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 12.7A
Voltage - Forward (Vf) (Max) @ If 1.6 V @ 12.7 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 µs
Current - Reverse Leakage @ Vr 20 µA @ 800 V
Mounting Type Through Hole
Package / Case TO-220-3 Isolated Tab
Supplier Device Package TO-220 Isolated Tab
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number D8020
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 583567-D8020L
Ultra Librarian 3D Model Ultra Librarian D8020L CAD Model

Description

The D8020L is a standard recovery diode rectifier from Littelfuse Inc.

  • Application: Rectifier
  • Maximum DC Reverse Voltage: 800V
  • Average Rectified Current: 12.7A
  • Forward Voltage: 1.6V @ 12.7A
  • Reverse Recovery Time: 4 µs
  • Mounting Type: Through-Hole
  • Package: TO-220-3 Isolated Tab
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0080
  • Status: Discontinued
  • Remains a trusted choice for: Rectifier applications
