Same model may have multiple batches, images only for reference.

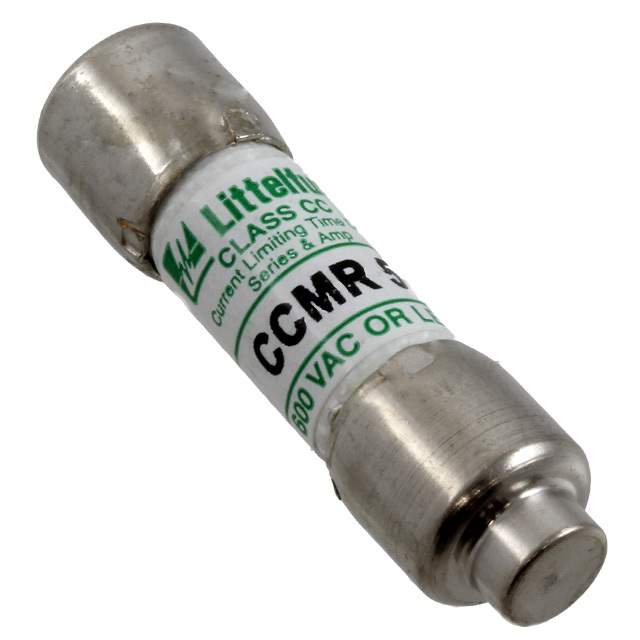

CCMR015.T Real Image
Same model may have multiple batches, images only for reference.

CCMR015.T

Part No CCMR015.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 15A 600VAC/500VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Part Status Obsolete (End Of Life)
Fuse Type Cartridge
Current Rating (Amps) 15A
Voltage Rating - AC 600V
Voltage Rating - DC 500V
Response Time Slow Blow
Applications Motor Protection
Class CC
Approvals CE, UL
Breaking Capacity at Rated Voltage 200kA AC, 20kA DC
Mounting Style Holder
Manufacturer Package 5AG, 10mm x 38.1mm
Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803360-CCMR015.T
Ultra Librarian 3D Model Ultra Librarian CCMR015.T CAD Model

Description

The Littelfuse Inc. 803360-CCMR015.T is a slow blow cartridge fuse.

  • Voltage Rating: 600V AC, 500V DC
  • Current Rating: 15A
  • Breaking Capacity: 200kA AC, 20kA DC
  • Dimension: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
  • Packaging: 5AG, 10mm x 38.1mm
  • Approvals: CE, UL
  • Classification: CC
  • Product Status: Obsolete (End of Life)
  • Manufacturer Pack Quantity: 10
