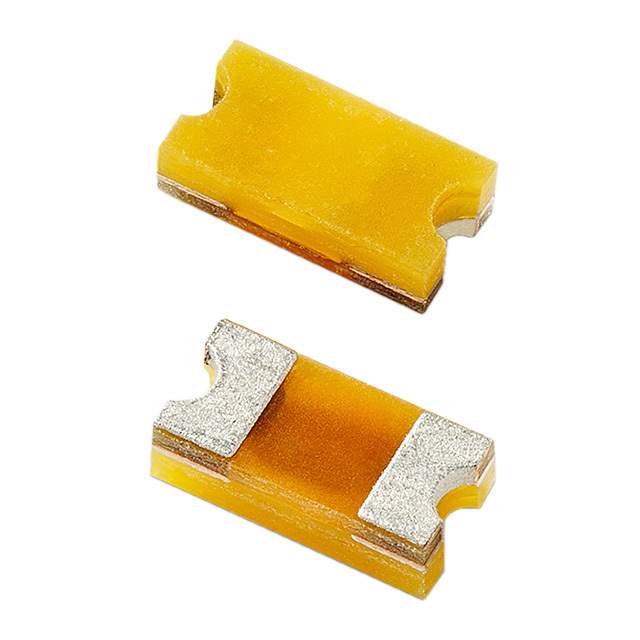

AXGD10402KR Real Image
Same model may have multiple batches, images only for reference.

AXGD10402KR

Part No AXGD10402KR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 40VC 0402
Datasheet
AXGD10402KR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 28 Weeks
Features 40V (Typ) Clamp - Ipp Tvs Diode Surface Mount 0402
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q200, XTREME-GUARD™
Package Reel - TR
Operating Temperature Range -65°C ~ 125°C
Mounting Surface Mount
Package 0402 (1005 Metric), Concave
Case / Package 0402
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F10019CT, F10019TR, F10019DKR, -AXGD10402KR
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862752-AXGD10402KR
Ultra Librarian 3D Model Ultra Librarian AXGD10402KR CAD Model

Description

The Littelfuse Inc. AXGD10402KR is a TVS diode that is used in various circuit protection applications.

  • Clamp Voltage: 40V (Typ)
  • Package: 0402 (1005 Metric), Concave
  • Packaging: Reel - TR
  • Mounting: Surface Mount Technology
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Series: Automotive, AEC-Q200, XTREME-GUARD™
