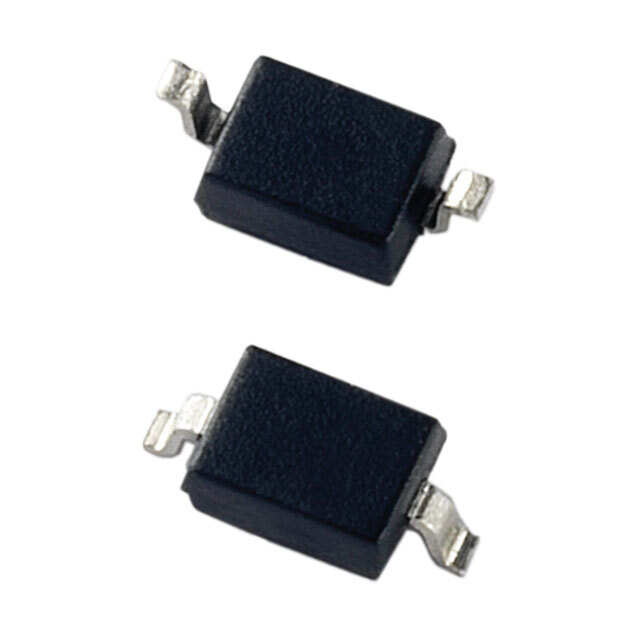

Same model may have multiple batches, images only for reference.

AQ15C-01FTG

Name: AQ15C-01FTG
Brand: Littelfuse Inc.
SKU: 1362217
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AQ15C-01FTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 15VWM 31VC SOD323 / 31V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, AQ, SPA®
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V (Max)
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	31V
Current - Peak Pulse (10/1000µs)	12A (8/20µs)
Power - Peak Pulse	450W
Power Line Protection	No
Applications	Automotive, CAN
Capacitance @ Frequency	75pF @ 1MHz (Max)
Temperature Range - Operating	-40°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Base Product Number	AQ15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362217-AQ15C-01FTG
Ultra Librarian 3D Model	Ultra Librarian AQ15C-01FTG CAD Model

Alternative Products

Description

The AQ15C-01FTG is a surface mount TVS diode from the AQ series by Littelfuse Inc.

Application: Automotive, CAN Networks
Operating Temperature Range: -40°C to 150°C
Diode Type: Bidirectional
Reverse Standoff Voltage: 15V (max)
Clamping Voltage: 31V @ Peak Pulse Current of 12A (8/20µs)
Power Peak Pulse: 450W
Package: SOD-323
Packaging: Tape and Reel
AEC-Q101 Standard: Meets Requirements
