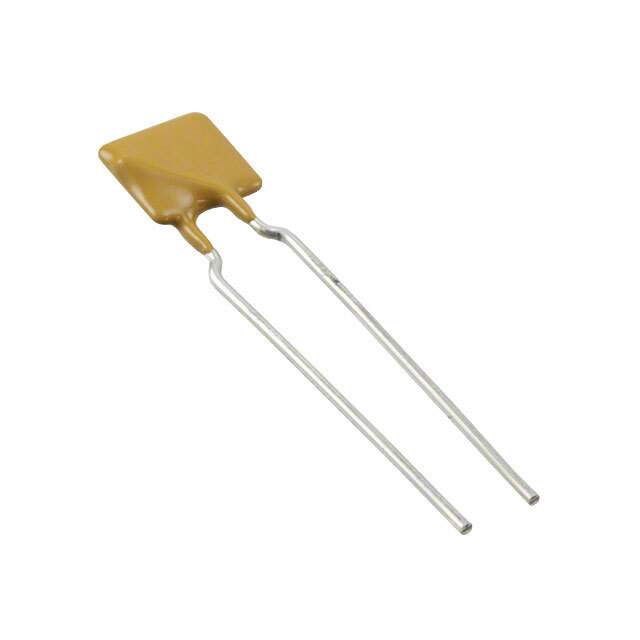

The Littelfuse Inc. 598047 is a polymeric type circuit protection component with through-hole mounting style.

• Mounting Style: through-hole
• Maximum Voltage: 16V
• Maximum Current: 100A
• Current Trip (It): 16.5A
• Time to Trip: 6s
• Resistance Initial (Ri): 4.1 mOhms
• Resistance Post-Trip (R1): 13.5 mOhms
• Rating: AEC-Q200
• Approval: approved for general applications
• Lead Spacing: 0.199 inches (5.05mm)
• Height Seated: 0.906 inches (23.00mm)
• Package: radial, disc package
• Current Hold (Ih): maximum 9A
• Temperature Range: -40°C to 85°C
• Manufacturer: Littelfuse Inc.
• Supply and Demand Status: limited
• Manufacturer Pack Quantity: 500
• MSL Level: not applicable
• Part Dimension: 0.551 inches L x 0.118 inches W (14.00mm x 3.00mm)
