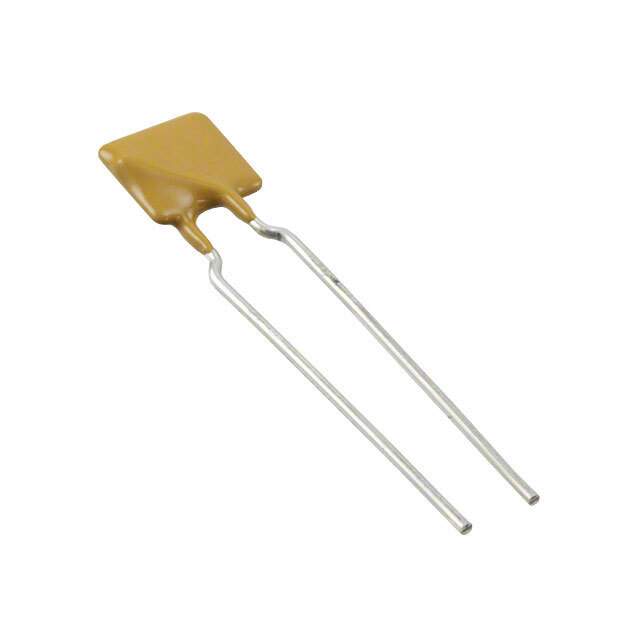

AGRF600 Real Image
Same model may have multiple batches, images only for reference.

AGRF600

Part No AGRF600
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 6A RADIAL  /  Polymeric PTC Resettable Fuse 16V 6 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, AGRF
Package Bag
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 6 A
Current - Trip (It) 10.7 A
Time to Trip 3.5 s
Resistance - Initial (Ri) (Min) 9.5 mOhms
Resistance - Post Trip (R1) (Max) 28 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.421" L x 0.118" W (10.70mm x 3.00mm)
Height - Seated (Max) 0.724" (18.40mm)
Lead Spacing 0.199" (5.05mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names E44661-000,RF3278-000,-AGRF600HF,-AGRF600,-AGRF600-ND,AGRF600HF
Standard Package 500
Win Source Part Number 1021474-AGRF600
Ultra Librarian 3D Model Ultra Librarian AGRF600 CAD Model

Description

The Littelfuse Inc. 1021474-AGRF600 is a PTC resettable fuse from the PolySwitch AGRF series.

  • Series: PolySwitch AGRF
  • Mounting Type: Through-hole
  • Voltage Rating: 16V
  • Current Rating: 100A
  • Current Hold: 6A
  • Current Trip: 10.7A
  • Time to Trip: 3.5s
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 500
  • Fuse Type: Polymeric
  • Height: 0.724" (18.40mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Package/Case: Radial, disc
  • Dimension: 0.421" L x 0.118" W (10.70mm x 3.00mm)
  • Initial Resistance: 9.5 mOhms
  • Post-Trip Resistance: 28 mOhms
  • Application: Circuit protection
