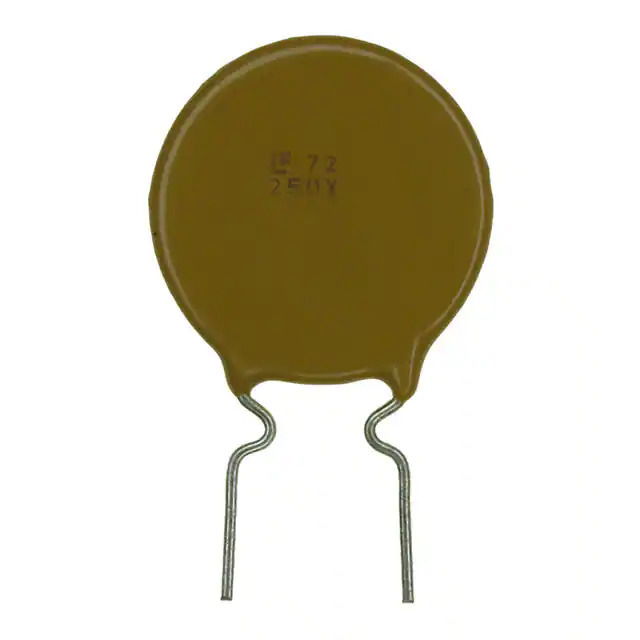

72R250XF Littelfuse Inc.
Same model may have multiple batches, images only for reference.

72R250XF

Part No 72R250XF
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 2.5A RADIAL / Polymeric PTC Resettable Fuse 72V 2.5 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 72R
Package Bulk
Product Status Active
Type Polymeric
Voltage - Max 72V
Current - Hold (Ih) (Max) 2.5 A
Current - Trip (It) 5 A
Current - Max 40 A
Time to Trip 15.6 s
Resistance - Initial (Ri) (Min) 50 mOhms
Resistance - Post Trip (R1) (Max) 130 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.785" Dia x 0.122" T (19.93mm x 3.10mm)
Height - Seated (Max) 1.032" (26.20mm)
Thickness (Max) -
Lead Spacing 0.402" (10.20mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361773-72R250XF
Ultra Librarian 3D Model Ultra Librarian 72R250XF CAD Model

Description

The 1361773-72R250XF is a PTC resettable fuse from Littelfuse Inc.'s POLY-FUSE® 72R series. This polymeric fuse is designed for circuit protection and operates in a temperature range of -40°C to 85°C.

  • Operating Temperature: -40°C to 85°C
  • Maximum Current Rating: 40 A
  • Maximum Voltage Rating: 72V
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Current Hold (Ih): 2.5 A
  • Current Trip (It): 5 A
  • Response Time: 15.6 s
