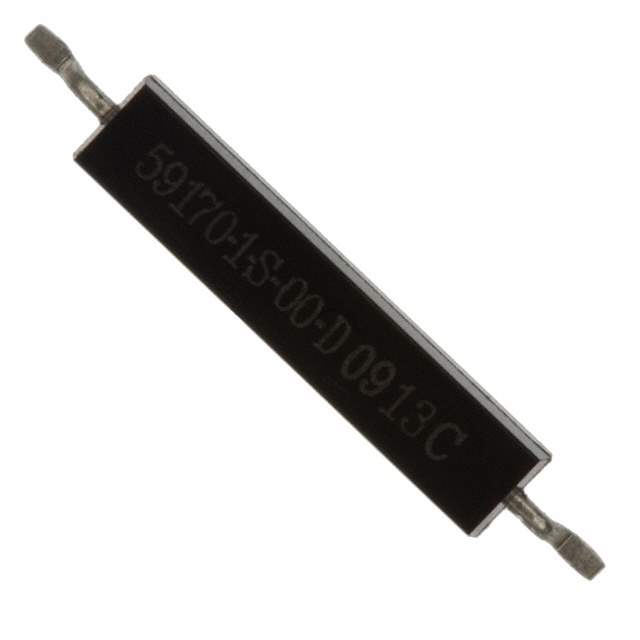

59170-1-S-00-D Real Image
Same model may have multiple batches, images only for reference.

59170-1-S-00-D

Part No 59170-1-S-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V / 59170-1-S-00-A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Molded Body
Circuit SPST-NO
Operate Range 10 ~ 15AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140V
Voltage - Switching DC 200V
Power - Rated 10W
Operate Time 1ms
Release Time 0.5ms
Mounting Style SMD
Termination Style Gull Wing
Length - Overall 0.640" (16.26mm)
Size - Body 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Height Above Board 0.095" (2.41mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3pF
Current - Carry 800mA (DC)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803227-59170-1-S-00-D
Ultra Librarian 3D Model Ultra Librarian 59170-1-S-00-D CAD Model

Description

The Littelfuse Inc. 59170-1-S-00-D is a surface-mount molded body switch that has a capacitance of 0.3pF.

  • Capacitance: 0.3pF
  • Power Rating: 10W
  • Circuit: SPST-NO
  • Operate Time: 1ms
  • Release Time: 0.5ms
  • Current Switching Capacity: 350mA (AC) and 500mA (DC)
  • Voltage Switching Capacity: 140V (AC) and 200V (DC)
  • Current-Carrying Capacity: 800mA (DC)
  • Operating Temperature Range: -40°C to 125°C
