Part No 5520
Manufacturer Littelfuse Inc.
Catalog Toggle Switches
Description SWITCH TGL SPST
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Littelfuse Inc.
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (DC)
Voltage Rating - DC 24 V
Actuator Type Standard Round
Actuator Length 17.53mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 11.90mm Dia
Bushing Thread 15/32-32
Actuator Material Brass, Nickel Plated
Standard Package 160 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 546598-5520
Ultra Librarian 3D Model Ultra Librarian 5520 CAD Model

Description

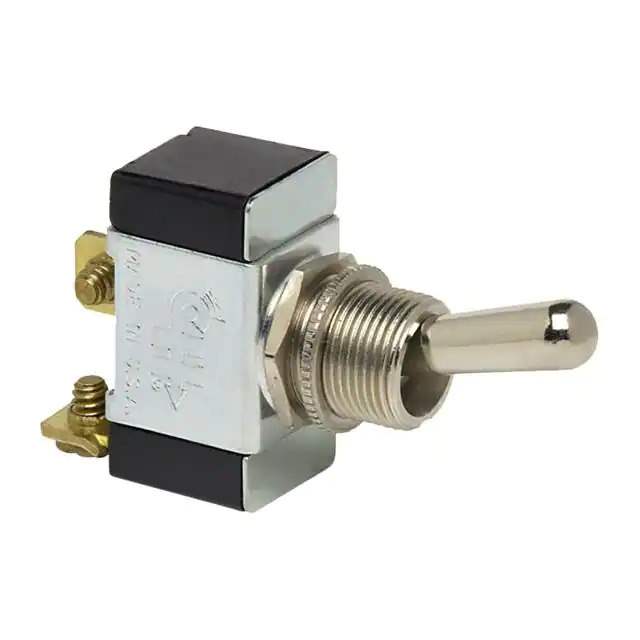

The 546598-5520 is a toggle switch from Littelfuse Inc..

  • Mounting: Panel mounting
  • Termination Style: Screw terminal
  • Circuit Configuration: SPST
  • Switch Function: On-Off
  • Actuator Type: Standard round
  • Actuator Length: 17.53mm
  • Actuator Material: Brass and nickel plated
  • Voltage Rating (DC): 24V
  • Current Rating: 15A
  • Illumination: Non-illuminated
  • Bushing Thread: 15/32-32
  • Operating Temperature Range: Not specified
  • Package: Bulk
  • Standard Package: 160 pcs
