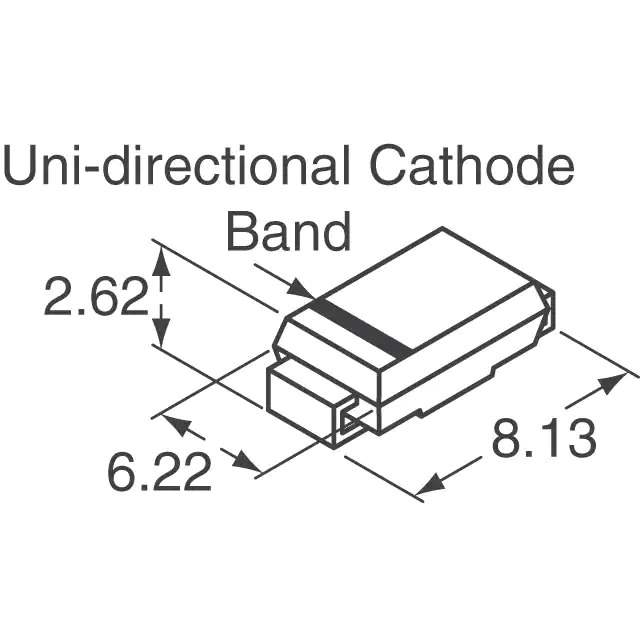

Same model may have multiple batches, images only for reference.

5.0SMDJ140CA

Name: 5.0SMDJ140CA
Brand: Littelfuse Inc.
SKU: 856223
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5.0SMDJ140CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 140VWM 292.1VC DO214AB
Datasheet	5.0SMDJ140CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	5.0SMDJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	140V
Voltage - Breakdown (Min)	156V
Voltage - Clamping (Max) @ Ipp	292.1V
Current - Peak Pulse (10/1000µs)	166.5A (8/20µs)
Power - Peak Pulse	5000W (5kW)
Power Line Protection	No
Applications	Telecom
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
Base Product Number	5.0SMDJ
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	856223-5.0SMDJ140CA
Ultra Librarian 3D Model	Ultra Librarian 5.0SMDJ140CA CAD Model

Alternative Products

Description

The 5.0SMDJ140CA is a transient voltage suppressor diode designed to protect electronic circuits from voltage spikes and transients by Littelfuse Inc.

Reverse Standoff Voltage: 140V
Breakdown Voltage: 156V
Clamping Voltage: 292.1V
Peak Pulse Power: 5000W
Application: Telecom
Package: Tape and reel
Pieces per package: 3,000
Temperature range: -65°C to 150°C
Mounting Type: Surface mount
Package: DO-214AB (SMCJ)
Product Status: Active
REACH: Not affected
