Same model may have multiple batches, images only for reference.

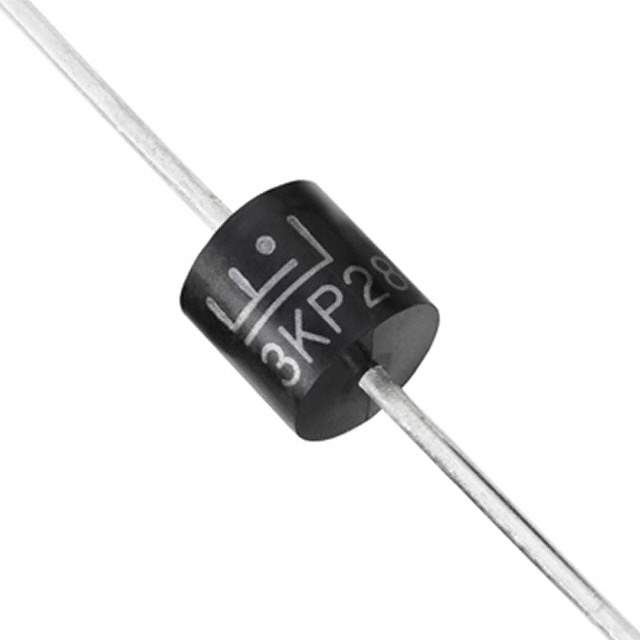

3KP48 Real Image
Same model may have multiple batches, images only for reference.

3KP48

Part No 3KP48
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 48VWM 81.27VC P600  /  81.27V Clamp 38.8A Ipp Tvs Diode Through Hole P600
Datasheet
3KP48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series 3KP
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 48V
Voltage - Breakdown (Min) 50.49V
Voltage - Clamping (Max) @ Ipp 81.27V
Current - Peak Pulse (10/1000µs) 38.8A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -3KP48
Standard Package 800
Win Source Part Number 1190882-3KP48
Ultra Librarian 3D Model Ultra Librarian 3KP48 CAD Model

Description

The 3KP48 is a Zener type TVS diode from Littelfuse Inc.

  • Diode Type: Zener TVS
  • Manufacturer: Littelfuse Inc.
  • Channel Type: Unidirectional
  • Voltage Reverse Standoff: 48V
  • Voltage Breakdown: 50.49V
  • Voltage Clamping @ Ipp: 81.27V
  • Power Peak Pulse: 3000W (3kW)
  • Application: General Purpose
  • Package: Tape and Reel
  • Mounting Type: Through-Hole
  • Package/Case: P600, Axial
  • Temperature Range: -55°C to 175°C (TJ)
  • Status: Obsolete
