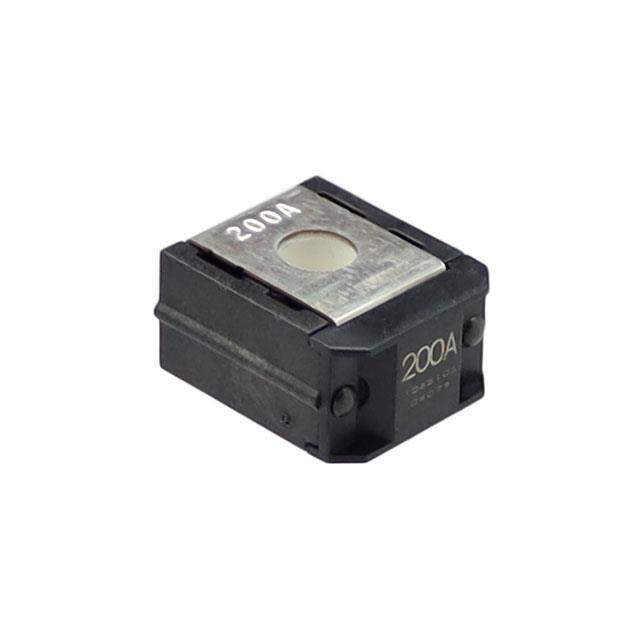

3298200.Z Real Image1 3298200.Z Real Image2
Same model may have multiple batches, images only for reference.
3298200.Z Real Image1 3298200.Z Real Image2
3298200.Z Real Image1 3298200.Z Real Image2
Same model may have multiple batches, images only for reference.

3298200.Z

Part No 3298200.Z
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 200A 32VDC MODULE / 200 A AC 32 V DC Fuse Automotive Bolt Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series ZCASE
Package Bulk
Mounting Type Bolt Mount
Fuse Type Automotive
Current Rating (Amps) 200 A
Voltage Rating - DC 32 V
Response Time -
Package / Case Module
Breaking Capacity @ Rated Voltage 2kA
Melting I2t 235000
Approval Agency -
Temperature Range - Operating -40°C ~ 125°C
Color -
Size / Dimension 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm)
DC Cold Resistance 0.231 Ohms
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Standard Package 480 pcs
Win Source Part Number 1380761-3298200.Z
Ultra Librarian 3D Model Ultra Librarian 3298200.Z CAD Model

Description

The ZCASE series automotive fuse is a reliable and efficient solution for circuit protection.

  • Voltage Rating: 32 V
  • Breaking Capacity: 2kA
  • Melting I2t: 235000
  • Size: 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm)
  • DC Cold Resistance: 0.231 Ohms
  • Mounting Type: Bolt Mount
  • Package: Module
  • Temperature Range: -40°C to 125°C
  • MSL: 1 (Unlimited)
  • Manufacturer: Littelfuse Inc.
