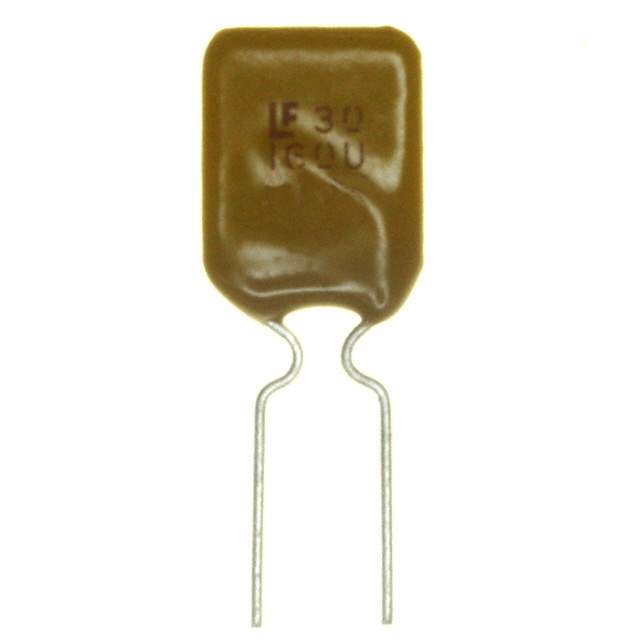

30R160UU Real Image
Same model may have multiple batches, images only for reference.

30R160UU

Part No 30R160UU
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.6A RADIAL / POLYFUSE Resettable PTCs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Maximum) 1.6A
Current - Trip (It) 3.2A
Time to Trip 8s
Resistance - Initial (Ri) (Min) 30 mOhms
Resistance - Post Trip (R1) (Maximum) 110 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Maximum) 0.598" (15.20mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812686-30R160UU
Ultra Librarian 3D Model Ultra Librarian 30R160UU CAD Model

Description

The 812686-30R160UU polymeric electronic component from Littelfuse Inc. is designed for use in circuit protection.

  • Voltage Rating: 30V
  • Current Rating: 40A
  • Current Trip (It): 3.2A
  • Time to Trip: 8s
  • Manufacturer Package: Radial, Disc
  • Mounting Style: Through Hole
  • Approvals: cURus, TUV
  • Resistance - Initial (Ri) (Min): 30 mOhms
  • Resistance - Post Trip (R1) (Maximum): 110 mOhms
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
