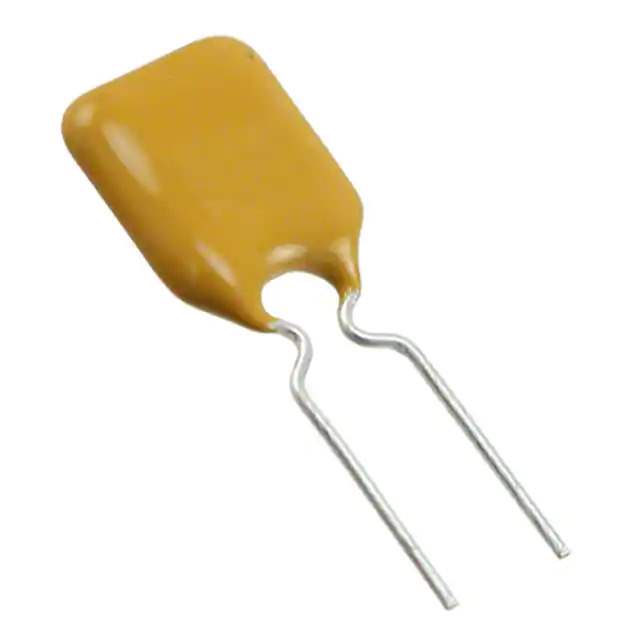

Same model may have multiple batches, images only for reference.

30R135UPR

Name: 30R135UPR
Brand: Littelfuse Inc.
SKU: 855599
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	30R135UPR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 1.35A RADIAL / Polymeric PTC Resettable Fuse 30V 1.35 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 30R
Package	Cut Tape (CT)Tape & Box (TB)
Product Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	1.35 A
Current - Trip (It)	2.7 A
Current - Max	40 A
Time to Trip	7.3 s
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	130 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	855599-30R135UPR
Ultra Librarian 3D Model	Ultra Librarian 30R135UPR CAD Model

Description

The 855599-30R135UPR is a polymeric PTC resettable fuse from the POLY-FUSE® 30R series from Littelfuse Inc.

Package Type: Cut tape (CT) and tape & box (TB)
Maximum Voltage: 30V
Maximum Current: 40A
Hold Current: 1.35A
Trip Current: 2.7A
Time to Trip: 7.3s
Package: Radial, disc
Mounting: Through-hole
Component Category: Active
