Same model may have multiple batches, images only for reference.

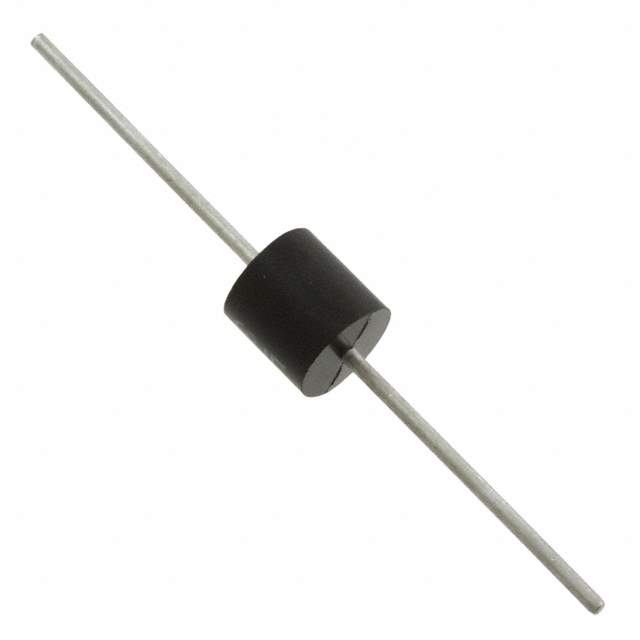

30KPA70CA Real Image
Same model may have multiple batches, images only for reference.

30KPA70CA

Part No 30KPA70CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 70VWM 109VC AXIAL
Datasheet
30KPA70CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 70V
Minimum Breakdown Voltage 78.2V
Max Clamping Voltage 109V
Peak Pulse Current(Ippm) 278A
Power Dissipation - Pd 30000W (30kW)
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package P600
Win Source Part Number 1004908-30KPA70CA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 30KPA70CA CAD Model

Description

The Littelfuse Inc. 1004908-30KPA70CA is a through-hole P600 package bidirectional zener diode with a stand-off voltage (Vwm) of 70V, a minimum breakdown voltage of 78.2V, and a maximum clamping voltage of 109V.

  • Peak Pulse Current: 278A
  • Power Dissipation: 30kW
  • Status: Active
  • Popularity: Medium
