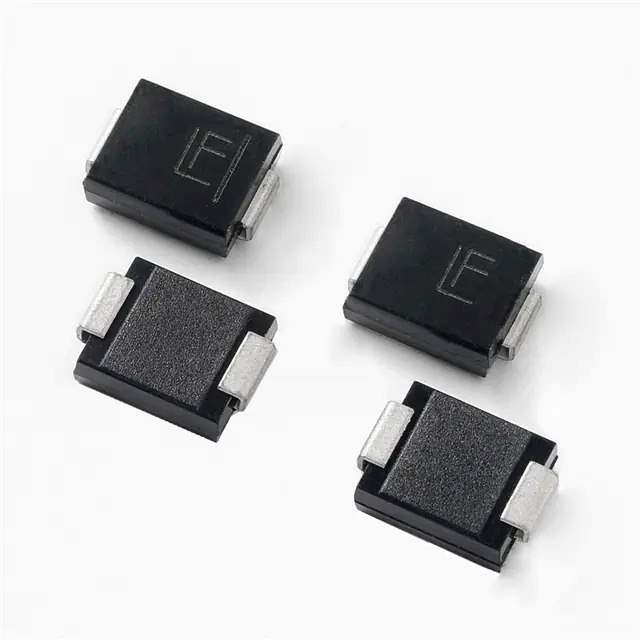

Same model may have multiple batches, images only for reference.

3.0SMCJ45CA

Name: 3.0SMCJ45CA
Brand: Littelfuse Inc.
SKU: 850434
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3.0SMCJ45CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIOD 3000W DO-214AB 45V
Datasheet	3.0SMCJ45CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	3.0SMCJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	45V
Voltage - Breakdown (Min)	50V
Voltage - Clamping (Max) @ Ipp	72.7V
Current - Peak Pulse (10/1000µs)	41.3A
Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Telecom
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
Base Product Number	3.0SMCJ
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	850434-3.0SMCJ45CA
Ultra Librarian 3D Model	Ultra Librarian 3.0SMCJ45CA CAD Model

Alternative Products

Description

The 850434-3.0SMCJ45CA is a TVS diode from Littelfuse Inc. It belongs to the 3.0SMCJ series and is designed for telecom applications.

Series: 3.0SMCJ
Application: Telecom
Type: Bidirectional
Reverse Standoff Voltage: 45V
Breakdown Voltage: 50V (min)
Clamping Voltage: 72.7V (Max) @ 3kW peak pulse current
Package: DO-214AB (SMC)
Operating Temperature: -65°C to 150°C
Status: Active
REACH: Unaffected
