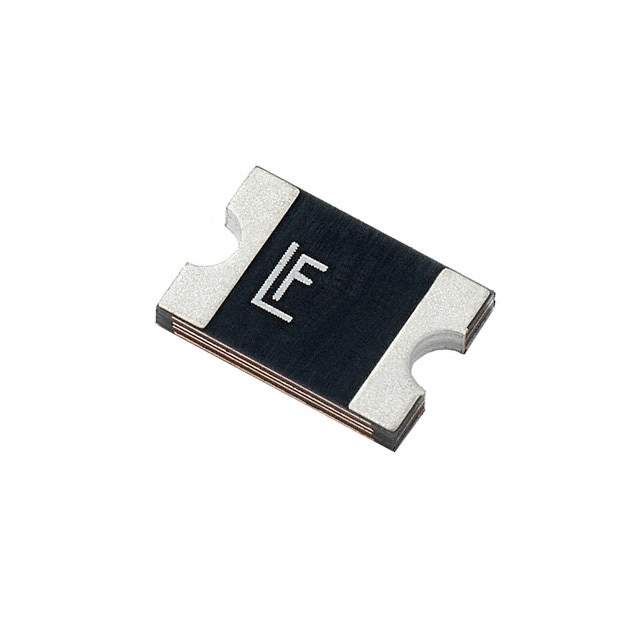

2920L700/12MR Real Image
Same model may have multiple batches, images only for reference.

2920L700/12MR

Part No 2920L700/12MR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 12V 7A 2920
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 12V
Current - Max 50A
Current - Hold (Ih) (Maximum) 7A
Current - Trip (It) 14A
Time to Trip 2s
Resistance - Initial (Ri) (Min) 3 mOhms
Resistance - Post Trip (R1) (Maximum) 18 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.063" (1.60mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802558-2920L700/12MR
Ultra Librarian 3D Model Ultra Librarian 2920L700/12MR CAD Model

Description

This electronic component is a polymeric fuse manufactured by Littelfuse Inc.

  • Win Source Part Number: 802558-2920L700/12MR
  • Packaging: Reel
  • Mounting: Surface Mount
  • Approvals: cURus, TUV
  • Maximum Voltage: 12V
  • Maximum Current: 50A
  • Current Trip (It): 14A
  • Time to Trip: 2s
  • Operating Temperature Range: -40°C ~ 85°C
  • Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
  • Initial Resistance (Ri) (Min): 3 mOhms
  • Manufacturer Package: 2920 (7351 Metric), Concave
  • Current Hold (Ih) (Maximum): 7A
  • Thickness (Maximum): 0.063" (1.60mm)
  • Post Trip Resistance (R1) (Maximum): 18 mOhms
  • Popularity: High
  • Threat of Fake Products: 74%
  • Supply and Demand: Balanced
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
