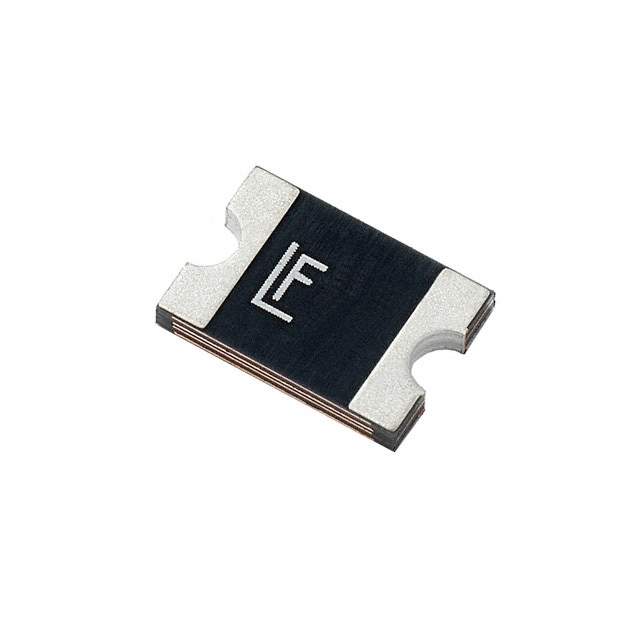

2920L400/15MR

Part No 2920L400/15MR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 15V 4A 2920
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Maximum) 4A
Current - Trip (It) 8A
Time to Trip 4s
Resistance - Initial (Ri) (Min) 10 mOhms
Resistance - Post Trip (R1) (Maximum) 40 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.063" (1.60mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805472-2920L400/15MR
Ultra Librarian 3D Model Ultra Librarian 2920L400/15MR CAD Model

Description

2920L400/15MR from Littelfuse Inc. is a PTC resettable fuse designed for circuits that need reusable overcurrent protection without the downtime of replacing a one-time fuse. Components in this category are commonly selected for power input protection, consumer electronics, industrial control boards, telecom equipment, battery-powered devices, and interface lines where fault recovery and field reliability matter. Engineers often choose resettable fuses like this to help limit damage from short circuits or overload events while simplifying maintenance and improving product uptime. As a Littelfuse device, it fits well in designs where recognized circuit protection sourcing and long-term support are important. The current lifecycle status for 2920L400/15MR is information not available, so design teams should confirm supply continuity directly with Littelfuse or authorized distributors before committing to new production. RoHS compliance information is also not available here and should be verified against the latest manufacturer datasheet or compliance declaration.
