Same model may have multiple batches, images only for reference.

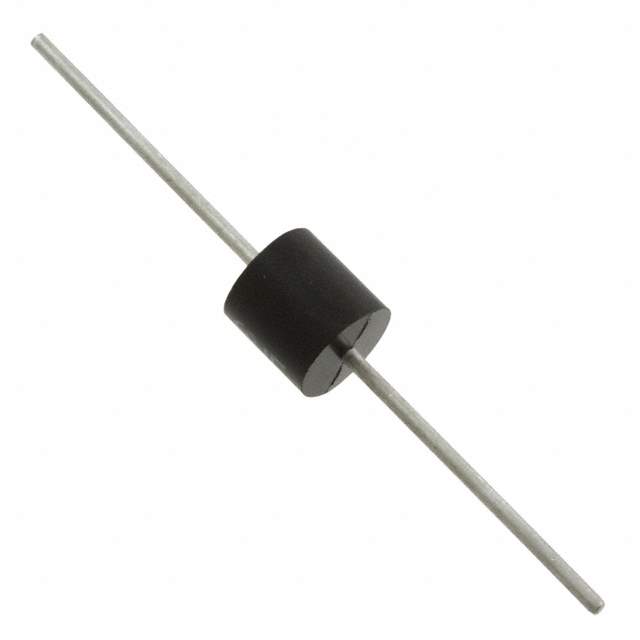

20KPA204CA Real Image
Same model may have multiple batches, images only for reference.

20KPA204CA

Part No 20KPA204CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 204VWM 329VC P600 / 329V Clamp 61.4A Ipp Tvs Diode Through Hole P600
Datasheet
20KPA204CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series 20KPA
Package Tape & Reel (TR),Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 204V
Voltage - Breakdown (Min) 227.9V
Voltage - Clamping (Max) @ Ipp 329V
Current - Peak Pulse (10/1000µs) 61.4A
Power - Peak Pulse 20000W (20kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 20KPA204CACT,20KPA204CA-ND,20KPA204CATR,-20KPA204CA
Standard Package 800
Win Source Part Number 1176840-20KPA204CA
Ultra Librarian 3D Model Ultra Librarian 20KPA204CA CAD Model

Description

The Littelfuse Inc. 20KPA204CA is a Zener type TVS diode with a reverse standoff voltage of 204V and a breakdown voltage of 227.9V.

  • Diode Type: Zener
  • Reverse Standoff Voltage: 204V
  • Breakdown Voltage: 227.9V
  • Clamping Voltage: 329V @ 61.4A Peak Pulse Current (10/1000µs)
  • Power Peak Pulse: 20kW
  • Temperature Range: -55°C to 175°C (TJ)
  • Mounting Type: Through Hole
  • Capacitance: - @ Frequency
  • Package: P600 Axial Tape and Reel or Cut Tape
  • Popularity: Low
  • Standard Package: 800
