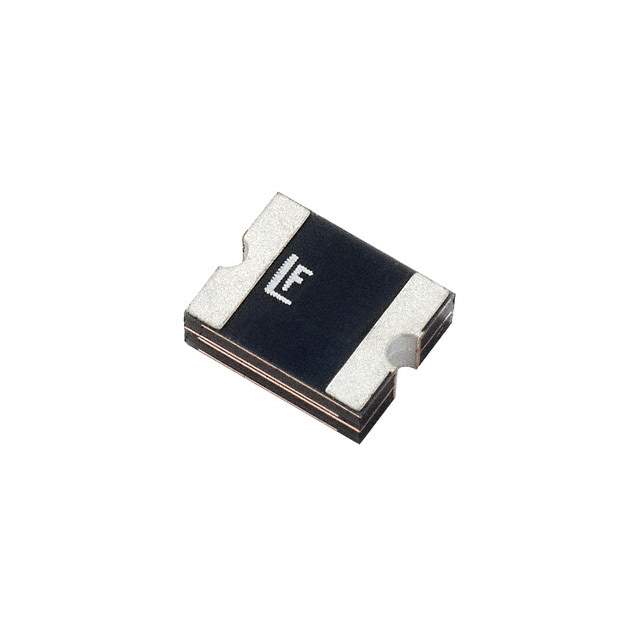

2016L030DR

Part No 2016L030DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET 60V 0.30A 2016
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 20A
Current - Hold (Ih) (Max) 300mA
Current - Trip (It) 600mA
Time to Trip 3s
Resistance - Initial (Ri) (Min) 500 mOhm
Resistance - Post Trip (R1) (Max) 2.3 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.200" L x 0.160" W (5.08mm x 4.07mm)
Thickness (Max) 0.049" (1.25mm)
Approvals cURus, TUV
Win Source Part Number 126265-2016L030DR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian 2016L030DR CAD Model

Description

Description

The 2016L030DR is an exceptional electronic component designed for robust applications. It blends efficiency with durability to deliver unparalleled performance in demanding settings.

Features and Benefits

  • Overload protection for enhanced safety
  • High current capacity suited for heavy-duty applications
  • Durability ensuring long-term use

Applications

  • Power distribution networks
  • Industrial machinery
  • Heavy equipment controls

Additional Details

This component is ideal for applications requiring consistent performance and safety under high-load conditions, making it indispensable for industrial and heavy-duty uses.
