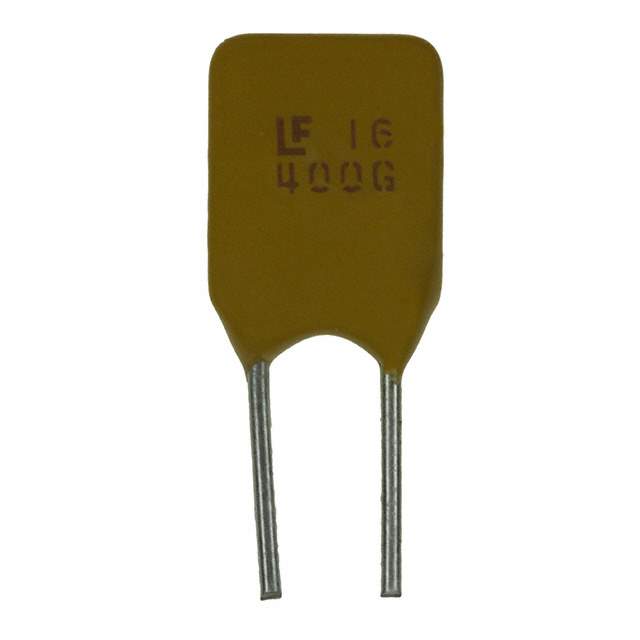

Same model may have multiple batches, images only for reference.

16R400GPR

Name: 16R400GPR
Brand: Littelfuse Inc.
SKU: 538752
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16R400GPR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYFUSE® Resettable PTCs \| PTC RESET FUSE 16V 4A RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Cut Tape (CT)
Type	Polymeric
Voltage - Max	16V
Current - Max	100A
Current - Hold (Ih) (Maximum)	4A
Current - Trip (It)	6.8A
Time to Trip	1.7s
Resistance - Initial (Ri) (Minimum)	21 mOhms
Resistance - Post Trip (R1) (Maximum)	60 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Style	Through Hole
Manufacturer Package	Radial, Disc
Parts Dimension	0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Maximum)	0.504" (12.80mm)
Lead Spacing	0.201" (5.10mm)
Approvals	cURus, TUV
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1121440-16R400GPR
Manufacturer Homepage	www.littelfuse.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 16R400GPR CAD Model

Alternative Products

Description

The Littelfuse Inc. 1121440-16R400GPR is a polymeric type circuit protection component with a through-hole mounting style.

Approvals: cURus and TUV
Maximum Voltage: 16V
Maximum Current: 100A
Current Trip (It): 6.8A
Time to Trip: 1.7s
Resistance - Initial (Ri) (minimum): 21 mOhms
Resistance - Post Trip (R1) (maximum): 60 mOhms
Height-Seated (Maximum): 0.504" (12.80mm)
Manufacturer Package: Radial, Disc
Popularity: Medium
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 1
MSL Level: 1 (unlimited)
Parts Dimension: 0.350" L x 0.118" W (8.90mm x 3.00mm)
