Same model may have multiple batches, images only for reference.

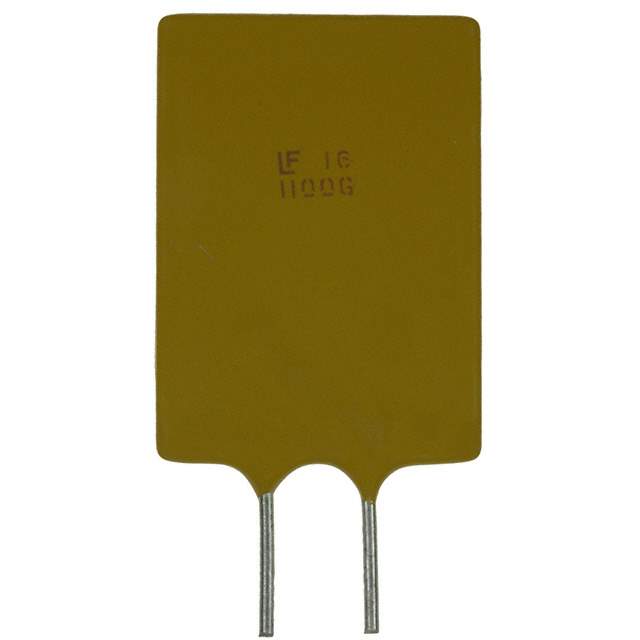

16R1100GMR Real Image
Same model may have multiple batches, images only for reference.

16R1100GMR

Part No 16R1100GMR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 11A RADIAL / Polymeric PTC Resettable Fuse 16V 11 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 16R
Package Tape & Box (TB)
Product Status Obsolete
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 11 A
Current - Trip (It) 18.7 A
Time to Trip 7 s
Resistance - Initial (Ri) (Min) 3.7 mOhms
Resistance - Post Trip (R1) (Max) 8.9 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names -16R1100GMR
Standard Package 1,000
Win Source Part Number 1194656-16R1100GMR
Ultra Librarian 3D Model Ultra Librarian 16R1100GMR CAD Model

Description

The Littelfuse Inc. 1194656-16R1100GMR is a Polymeric PTC Resettable Fuse ideal for circuit protection.

  • Series: POLY-FUSE® 16R
  • Package Type: Tape & Box (TB)
  • Package/Case: Radial, Disc
  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Hold (Ih): 11A
  • Current Trip (It): 18.7A
  • Time to Trip: 7 seconds
  • Operating Temperature Range: -40°C to 85°C
  • Dimensions: 0.689" L x 0.118" W (17.50mm x 3.00mm)
  • Resistance - Initial (Ri): 3.7 mOhms
  • Resistance - Post Trip (R1): 8.9 mOhms
  • Product Status: Obsolete
  • Approval Agency: cURus, TUV
