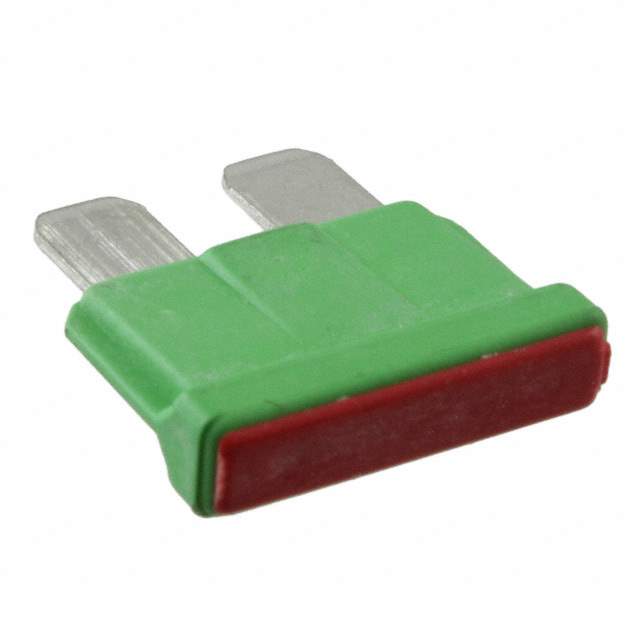

166.7000.5302 Real Image
Same model may have multiple batches, images only for reference.

166.7000.5302

Part No 166.7000.5302
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTOMOTIVE 30A 80VDC BLADE / FKS ATO STYLE BLADE FUSE RATED 80V UL 248 Special Purpose Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 30A
Voltage Rating - DC 80V
Response Time Slow Blow
Manufacturer Package Blade, ATO/ATC
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 1500
Approvals cULus
Color Green
Dimension 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm)
DC Cold Resistance 0.00179 Ohms
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810021-166.7000.5302
Ultra Librarian 3D Model Ultra Librarian 166.7000.5302 CAD Model

Description

The Littelfuse Inc. 810021-166.7000.5302 is a slow blow automotive fuse with a voltage rating of 80V and a current rating of 30A.

  • DC Cold Resistance: 0.00179 Ohms
  • Melting I2t: 1500
  • Color: Green
  • Package: Blade, ATO/ATC
  • Approvals: cULus
  • Breaking Capacity @ Rated Voltage: 1kA
  • Dimensions: 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm)
  • Packaging: Bulk
  • Mounting: Holder
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
