Same model may have multiple batches, images only for reference.

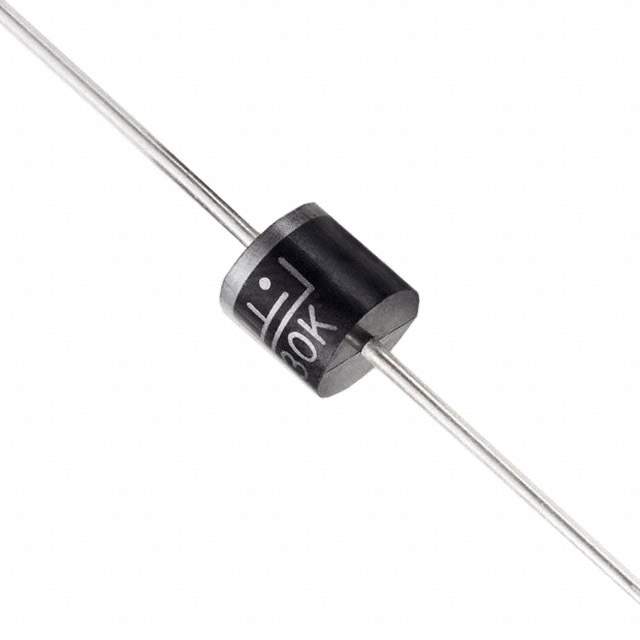

15KPA28A Real Image
Same model may have multiple batches, images only for reference.

15KPA28A

Part No 15KPA28A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description POWER TVS COMPONENT | TVS DIODE 28V 47.5V P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 28V
Voltage - Breakdown (Minimum) 31.28V
Voltage - Clamping (Maximum) at Ipp 47.5V
Current - Peak Pulse (10/1000μs) 317.9A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1121361-15KPA28A
Manufacturer Homepage www.protekdevices.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15KPA28A CAD Model

Description

The 15KPA28A is a Zener diode manufactured by Littelfuse Inc.

  • Type: Zener Diode
  • Packaging: Cut Tape
  • Mounting Style: Through-Hole
  • Channel: Unidirectional
  • Peak Pulse Current: 317.9A
  • Peak Pulse Power: 15000W
  • Power Line Protection: No
  • Application: Circuit Protection
  • Supply and Demand Status: Limited
  • Voltage Reverse Standoff: 28V
  • Voltage Breakdown: 31.28V
  • Voltage Clamping @ Ipp: 47.5V
