Same model may have multiple batches, images only for reference.

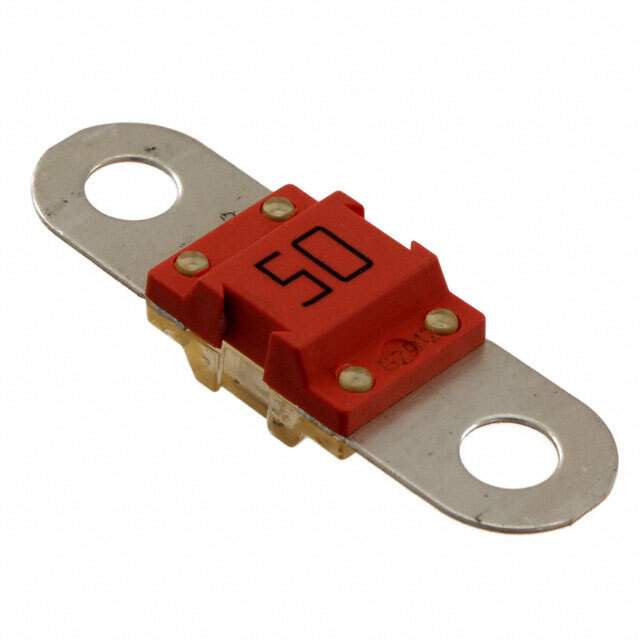

142.5631.5502 Real Image
Same model may have multiple batches, images only for reference.

142.5631.5502

Part No 142.5631.5502
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 50A 58VDC AUTO LINK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 50A
Voltage Rating - DC 58V
Response Time Slow Blow
Manufacturer Package Auto Link
Mounting Style Bolt Mount
Breaking Capacity at Rated Voltage 1kA
Melting I2t 6900
Approvals cUL
Color Red
Dimension 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm)
DC Cold Resistance 0.00103 Ohms
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809641-142.5631.5502
Ultra Librarian 3D Model Ultra Librarian 142.5631.5502 CAD Model

Description

The Littelfuse Inc. 809641-142.5631.5502 is an automotive fuse manufactured by Littelfuse Inc.

  • Fuse Type: Slow Blow
  • Voltage Rating - DC: 58V
  • Current Rating (Amps): 50A
  • Breaking Capacity at Rated Voltage: 1kA
  • DC Cold Resistance: 0.00103 Ohms
  • Melting I2t: 6900
  • Mounting: Bolt
  • Package: Bulk
  • Manufacturer Package: Auto Link
  • Dimension: 0.630 inches L x 0.472 inches W x 0.323 inches H (16.00mm x 12.00mm x 8.20mm)
  • Manufacturer Pack Quantity: 500
