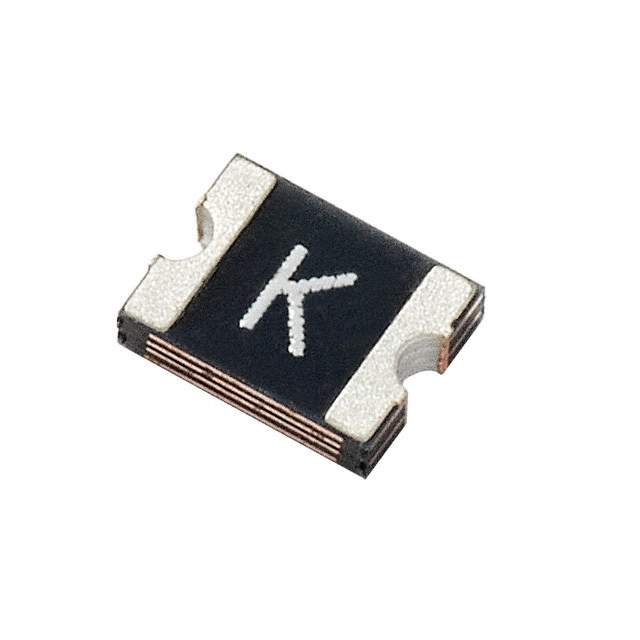

The 1210L400SL is a PolySwitch resettable fuse manufactured by Littelfuse Inc. This device is designed to protect electronic circuits from overcurrent conditions. Unlike traditional fuses that need to be replaced after blowing, the PolySwitch automatically resets once the overcurrent condition is removed, making it a cost-effective and convenient solution for circuit protection.

Applications:

• USB port protection
• Power supply protection
• Speaker protection
• Game console port protection
• General electronic circuit protection

Features:

• Resettable fuse (Polymeric Positive Temperature Coefficient - PPTC)
• Surface mount package (1210 size)
• 4.0A hold current
• 8.0A trip current
• Fast trip time
• Low resistance

Benefits:

• Provides reliable overcurrent protection
• Eliminates the need to replace fuses, reducing maintenance costs
• Resets automatically, minimizing downtime
• Offers a compact solution for circuit protection in space-constrained applications
• Protects sensitive electronic components from damage due to overcurrent events
• Reduces warranty claims by preventing circuit failures

Additional Details:

The 1210L400SL has a hold current of 4.0A, meaning it can continuously carry this current without tripping. When the current exceeds the trip current of 8.0A, the device rapidly increases its resistance, limiting the current flow and protecting the circuit. Once the overcurrent condition is removed, the device cools down and its resistance returns to a low value, allowing the circuit to resume normal operation. The 1210L400SL is designed to meet industry standards for safety and performance. The small 1210 surface mount package allows for easy integration into modern electronic designs. It's important to consider the operating temperature range and voltage rating of the device when selecting it for a particular application. The Littelfuse datasheet provides detailed information on the electrical characteristics, thermal performance, and recommended soldering procedures. Always refer to the datasheet for the most accurate and up-to-date specifications. Proper design considerations, such as thermal management and surge protection, are important to ensure optimal performance and reliability of the PolySwitch device.
