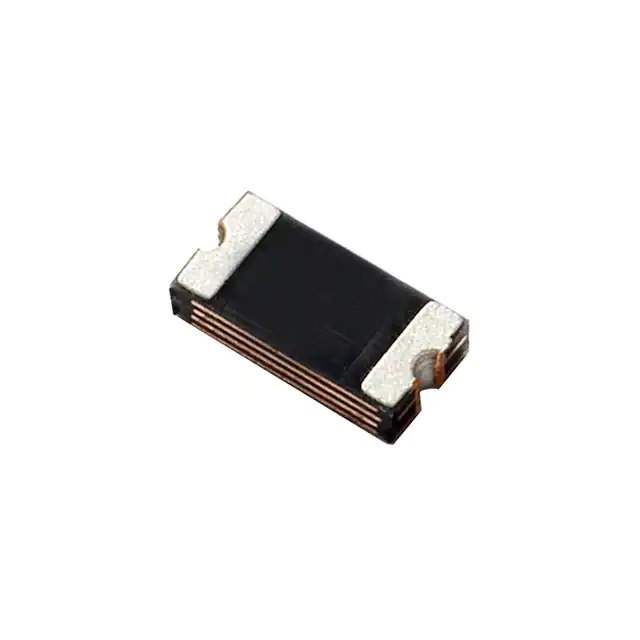

Same model may have multiple batches, images only for reference.

1206L110/12SLYR

Name: 1206L110/12SLYR
Brand: Littelfuse Inc.
SKU: 853828
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1206L110/12SLYR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 12V 1.1A 1206
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, LoRho
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	12V
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	2.2 A
Current - Max	50 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	15 mOhms
Resistance - Post Trip (R1) (Max)	130 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Concave
Size / Dimension	0.126" L x 0.065" W (3.20mm x 1.65mm)
Thickness (Max)	0.033" (0.85mm)
Approval Agency	cURus, TUV
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	853828-1206L110/12SLYR
Ultra Librarian 3D Model	Ultra Librarian 1206L110/12SLYR CAD Model

Alternative Products

Description

The 853828-1206L110/12SLYR is a POLY-FUSE® LoRho resettable fuse by Littelfuse Inc.

Designed for: circuit protection applications
Package: tape & reel
Size: 0.126" L x 0.065" W (3.20mm x 1.65mm)
Thickness: 0.033" (0.85mm)
Voltage rating: 12V
Maximum current rating: 50A
Initial resistance: 15 mOhms
Post-trip resistance: 130 mOhms
Time to trip: 300 ms
Temperature range: -40°C to 85°C
Mounting: surface mount
Compliance: complies with REACH regulations
Status: active product
Approvals: cURus and TUV
