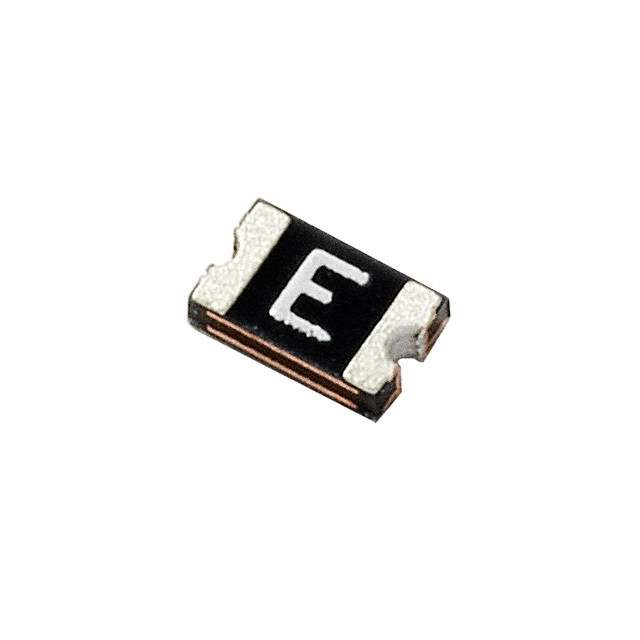

0805L035YRHF Real Image
Same model may have multiple batches, images only for reference.

0805L035YRHF

Part No 0805L035YRHF
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC 6V .35A RESETTABLE 0805
Datasheet
0805L035YRHF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 350mA
Current - Trip (It) 750mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 250 mOhm
Resistance - Post Trip (R1) (Max) 1.2 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.030" (0.75mm)
Approvals cURus, TUV
Win Source Part Number 197198-0805L035YRHF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0805L035YRHF CAD Model

Description

Overview

The 0805L035YRHF is a halogen-free resettable fuse, ideal for eco-friendly electronic designs requiring dependable overcurrent protection.

Features & Benefits

  • Environmentally Friendly: Halogen-free for sustainable projects.
  • Versatile Protection: Rapid response to overcurrent conditions.
  • Durability: Resilient through numerous reset cycles and exposure to operating stresses.

Applications

  • Industrial Controls
  • Network Equipment
  • Green Technologies

This component meets the rising demand for eco-friendly materials in modern electronics.
