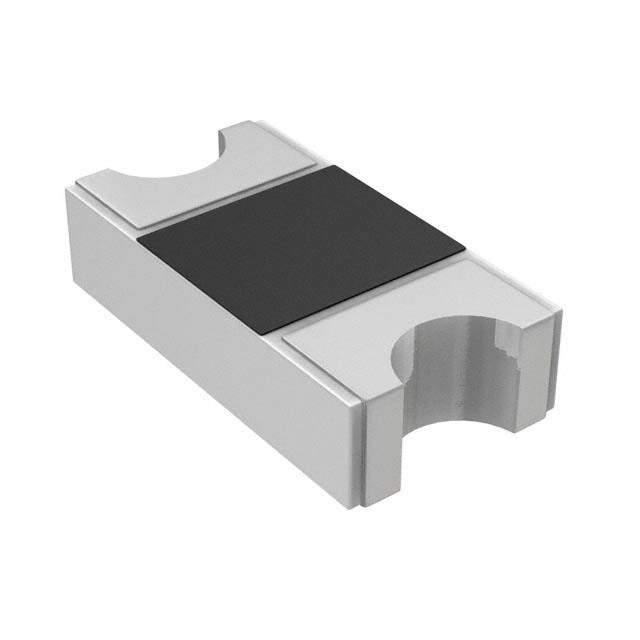

0603L150SLYR Real Image
Same model may have multiple batches, images only for reference.

0603L150SLYR

Part No 0603L150SLYR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 1.5A 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 1.5A
Current - Trip (It) 3A
Time to Trip 500ms
Resistance - Initial (Ri) (Min) 7 mOhms
Resistance - Post Trip (R1) (Maximum) 80 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 0603, Concave
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Maximum) 0.039" (1.00mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802544-0603L150SLYR
Ultra Librarian 3D Model Ultra Librarian 0603L150SLYR CAD Model

Description

The Littelfuse Inc. 802544-0603L150SLYR is a Polymeric type surface mount fuse with a maximum voltage rating of 6V and a maximum current rating of 50A.

  • Maximum Voltage: 6V
  • Maximum Current: 50A
  • Current Trip Rating: 3A
  • Time to Trip: 500ms
  • Resistance: 7 mOhms
  • Post Trip Resistance: 80 mOhms
  • Approvals: cURus, TUV
  • Temperature Range: -40°C to 85°C
  • Package Dimensions: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Packaging: Reel
  • Quantity Per Package: 4000
