Same model may have multiple batches, images only for reference.

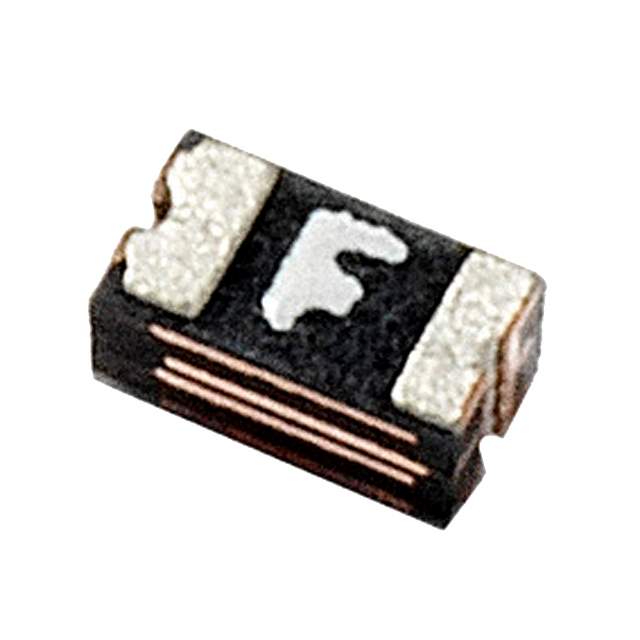

0603L035YR Real Image
Same model may have multiple batches, images only for reference.

0603L035YR

Part No 0603L035YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 6V .35A SMD 0603
Datasheet
0603L035YR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 350mA
Current - Trip (It) 750mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 200 mOhm
Resistance - Post Trip (R1) (Max) 1 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Max) 0.061" (1.55mm)
Approvals cURus, TUV
Win Source Part Number 1000297-0603L035YR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Portable Devices, Industrial, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian 0603L035YR CAD Model

Description

The 1000297-0603L035YR is a polymeric type circuit protection device from Littelfuse Inc. that is approved by cURus and TUV.

  • Mounting: SMD (SMT)
  • Thickness: 0.061" (1.55mm)
  • Voltage: 6V (Max)
  • Current: 40A (Max)
  • Current Hold (Ih) (Max): 350mA
  • Current Trip (It): 750mA
  • Time to Trip: 100ms
  • Temperature Range: -40°C to 85°C
  • Resistance - Initial (Ri) (Min): 200 mOhm
  • Resistance - Post Trip (R1) (Max): 1 Ohm
