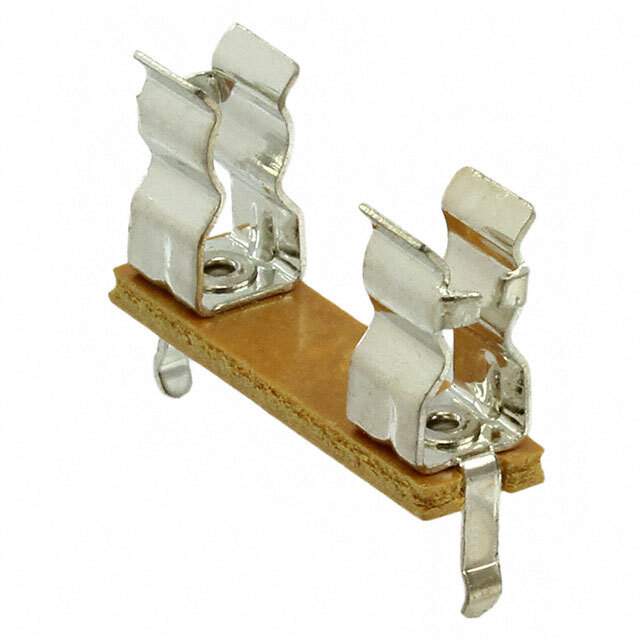

05200002H Real Image
Same model may have multiple batches, images only for reference.

05200002H

Part No 05200002H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOCK CART 250V 6.3A PCB / 5 x 20 mm LOW AMPERAGE P.C. Board Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Block
Fuse Type Cartridge
For Use With/Related Products 5mm x 20mm
Fuse Size 5mm x 20mm
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 6.3A
Mounting Style Through Hole
Orientation Horizontal
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Tin
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808269-05200002H
Ultra Librarian 3D Model Ultra Librarian 05200002H CAD Model

Description

The Littelfuse Inc. 05200002H is a cartridge fuse holder block.

  • Mounting Style: Through Hole
  • Termination Style: PC pin
  • Popularity: Medium
  • Supply & Demand: Balanced
  • Fuse Size: 5mm x 20mm
  • Voltage Rating: 250V
  • Current Rating: 6.3A
  • Contact Material: Spring Brass with Tin Finish
  • Circuits: Single
  • Orientation: Horizontal
  • Manufacturer Pack Quantity: 100
