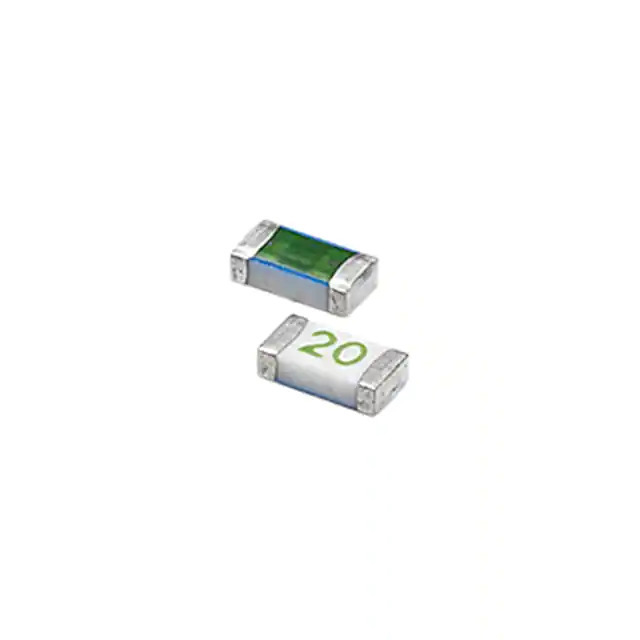

0501020.WRA Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0501020.WRA

Part No 0501020.WRA
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 20A 32VDC 1206 / 20 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 501A
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 20 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 150A
Melting I²t 86.36
Approval Agency CSA, cURus
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm)
DC Cold Resistance 0.00194 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361414-0501020.WRA
Ultra Librarian 3D Model Ultra Librarian 0501020.WRA CAD Model

Description

The 1361414-0501020.WRA is a surface mount fuse from Littelfuse Inc.

  • Series: 501A
  • Package Size: 1206 (3216 Metric)
  • Current Rating: 20 A
  • Voltage Rating: 32 V DC
  • Fuse Type: Fast Blow
  • Breaking Capacity (Rated Voltage): 150A
  • Melting I²t: 86.36
  • Approvals: CSA, cURus
  • DC Cold Resistance: 0.00194 Ohms
  • Mounting Type: Surface Mount
  • REACH Compliant: No
  • ECCN: EAR99
