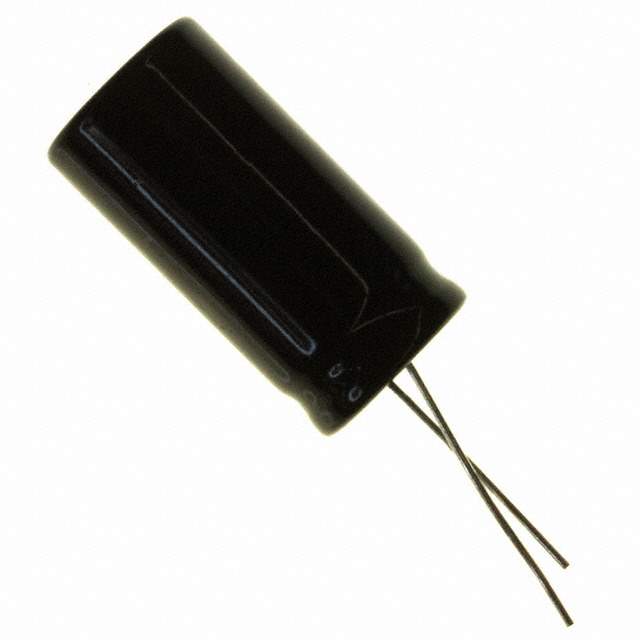

Same model may have multiple batches, images only for reference.

SEK682M016ST

Get a Quote

Part No	SEK682M016ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SEK682M016ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SEK
Package	Bulk
Capacitance	6800 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	60mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.79 A @ 120 Hz
Ripple Current @ High Frequency	2.148 A @ 10 kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.417" (36.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308335-SEK682M016ST
Ultra Librarian 3D Model	Ultra Librarian SEK682M016ST CAD Model

Description

The SEK682M016ST is an aluminum electrolytic capacitor with a capacitance of 6800 µF and a voltage rating of 16 V.

Capacitance: 6800 µF
Voltage Rating: 16 V
Tolerance: ±20%
Maximum ESR (Equivalent Series Resistance): 60mOhm @ 120Hz
Polarization: Polarized
Temperature Range: -55°C ~ 105°C
Lifetime: 2000 Hrs @ 105°C
Manufacturer: Cornell Dubilier Electronics (CDE)
Packaging: Bulk packaging
